DeWalt DWS520KT Plunge Cut Circular Saw and Guide Rail Kit

DeWalt DWS520KT Plunge Cut Circular Saw and Guide Rail Kit - the ultimate tool for precision cutting and carpentry. This kit includes a high-quality plunge saw, two 1.5m guide rails, a joining bar, Guide Rail Bag and a Tstak box for easy storage and transportation. The saw features a powerful motor and a smooth plunge mechanism for clean, accurate cuts every time. The guide rails ensure straight cuts and the joining bar allows for easy rail connection.

The plunge saw is perfect for carpenters, allowing for precise cuts in a variety of materials, including hardwoods, softwoods, and sheets. The saw’s depth lever allows for quick, tool-free depth adjustment, and the onboard tool storage means you can quickly change blades and increase productivity. The saw’s anti-kickback function and riving knife provide added safety, while the dust extraction port helps keep your workspace clean.

The guide rails included in the kit are made from high-quality aluminum and feature a non-slip base for added stability. The joining bar allows for easy rail connection, ensuring that your cuts are straight and accurate. The Tstak box provides a convenient storage solution for the saw, guide rails, and accessories, making it easy to transport the kit to and from job sites.

Whether you’re a professional carpenter or a DIY enthusiast, the DeWalt DWS520KT Plunge Cut Circular Saw and Guide Rail Kit is the ideal solution for all your cutting needs. With its powerful motor, smooth plunge mechanism, and high-quality guide rails, this kit provides everything you need for precision cutting.

Specifications
• Power Input: 1300 Watts
• Power Output: 690 Watt
• No Load Speed: 1750 - 4200 rpm
• Blade Diameter: 165 mm
• Blade Bore: 20mm
• Bevel Capacity: 47 °
• Max. Depth of Cut at 90º: 59mm
• Max. Depth of Cut at 90º (with guide rails): 55mm
• Max. Depth of Cut at 45º: 44mm
• Max. Depth of Cut at 45º (with guide rails): 40mm
• Weight: 5.1kg
• Length: 303mm
• Height: 265mm
• Hand/Arm Vibration: 2.5 m/s2
• Uncertainty K 1 (Vibration): 1.5 m/s²
• Sound Pressure: 92 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Sound Power: 103 dB(A)
• Sound Power Uncertainty: 3 dB(A)

Features and Benefits
• Parallel plunge allows the user to maintain a smooth and constant hand position while cutting
• 48 tooth blade gives a fine and accurate finish with very little breakout in laminates
• Rail adjustment allows the saw to be adjusted accurately to the rail
• Variable speed allows the correct speed to be set for different types of materials
• Full wave electronics maintains a constant speed under heavy load
• The enclosed guard gives a 90% dust extraction capability
• 55mm depth of cut allows the trimming and sizing of most common door sizes
• The anti kickback function stops the saw from moving backwards along the rail and helps stop the saw from climbing out of the work piece when making plunge cuts

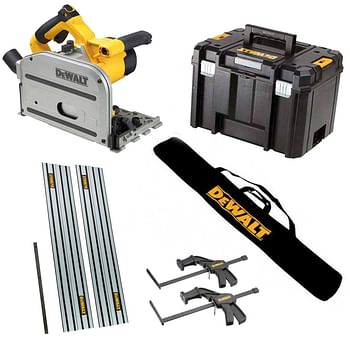

Contents
• DWS520K Plunge Saw
• 2 X 1.5 metre Guide Rails
• 48 Tooth Precision Saw Blade
• Heavy Duty Carrying Case
• 2 X Clamps
• Connecting Rod
• Guide Bag
