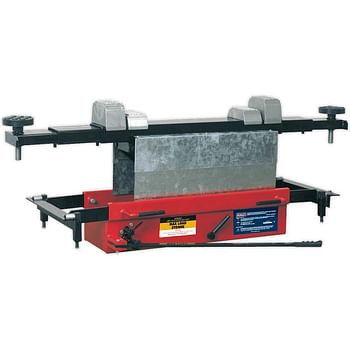

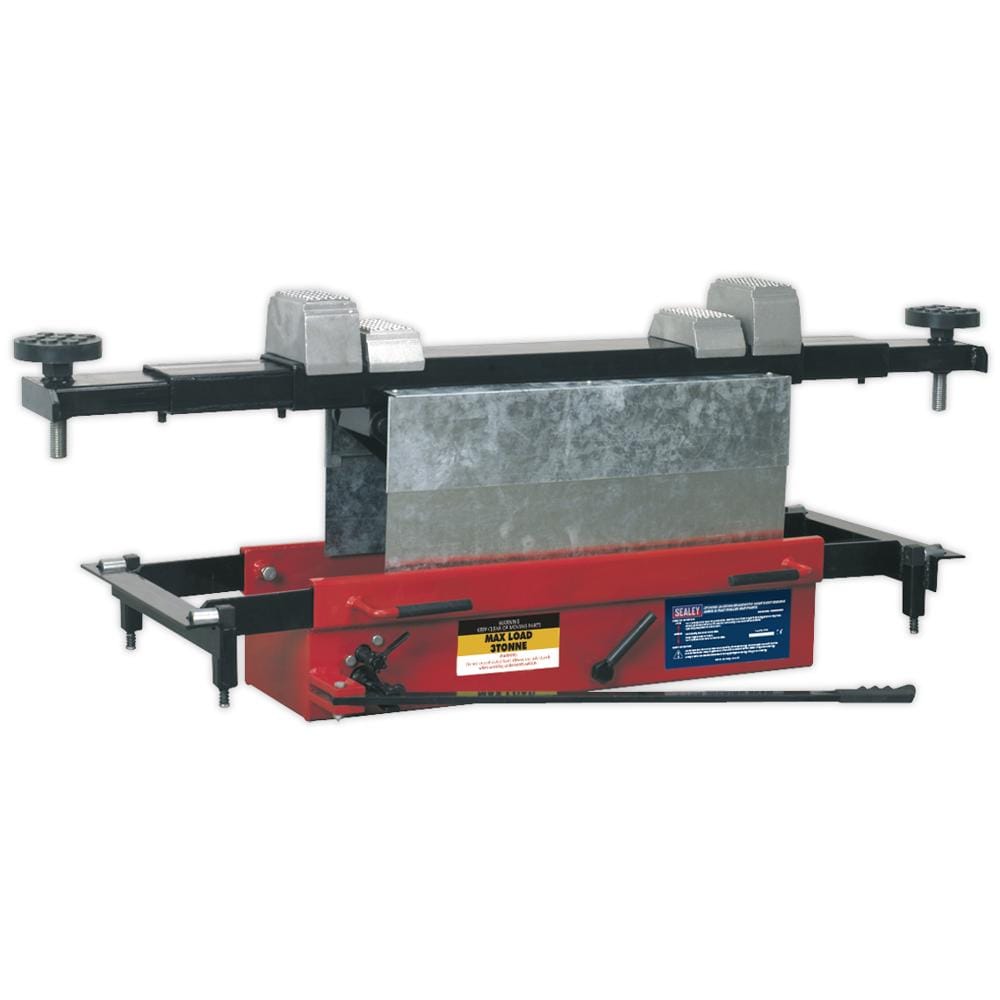

Sealey SJBEX300 Yankee Jacking Beam Extending Arms

The Sealey SJBEX300 is a 3-tonne capacity jacking beam with extending arms, designed specifically for professional workshop use in vehicle maintenance and MOT testing environments. Fully certified to comply with current MOT requirements, this heavy-duty lifting solution provides versatile vehicle positioning across pit or ramp installations.

The telescopic design offers impressive reach capabilities, with load arms extending from 850mm to 1.6m and support arms adjustable between 780mm and 1075mm. This wide lift configuration meets MOT recommendations for safe lifting on manufacturer-specified jacking points. The beam provides a vertical lift range of 95-300mm, accommodating various vehicle types and chassis heights commonly encountered in professional garage environments.

Safety features are comprehensive, including a 2-stage mechanical safety lock that prevents accidental lowering and telescopic finger guards to protect operators during adjustment. The spring-loaded flat arms incorporate roller bearings that support the beam's weight when unloaded, allowing smooth movement along the pit or ramp, whilst automatically locating the unit firmly when under load.

Supplied complete with two pairs of aluminium support blocks and optional hook arms for enhanced versatility across different vehicle underbody configurations. The robust construction is reflected in the substantial 102kg net weight, and delivery assistance is recommended due to this item's considerable mass.

Features and Benefits:
• 3-tonne capacity suitable for most passenger vehicles and light commercial applications
• Spring-loaded roller bearing arms enable smooth repositioning when unloaded
• 2-stage mechanical safety lock with telescopic finger guards for enhanced operator protection
• Wide lift configuration complies with MOT testing requirements
• Extending arms provide flexible positioning from 850mm to 1.6m load reach
• Supplied with aluminium support blocks and optional hook arms for versatile vehicle support

Specifications:
• Beam Lift: 95-300mm
• Brand: Sealey
• Capacity: 3 Tonne
• Load Arm Reach: 850-1600mm
• Nett Weight: 102kg
• Optional Accessories: n/a
• Support Arm Reach: 780-1075mm
