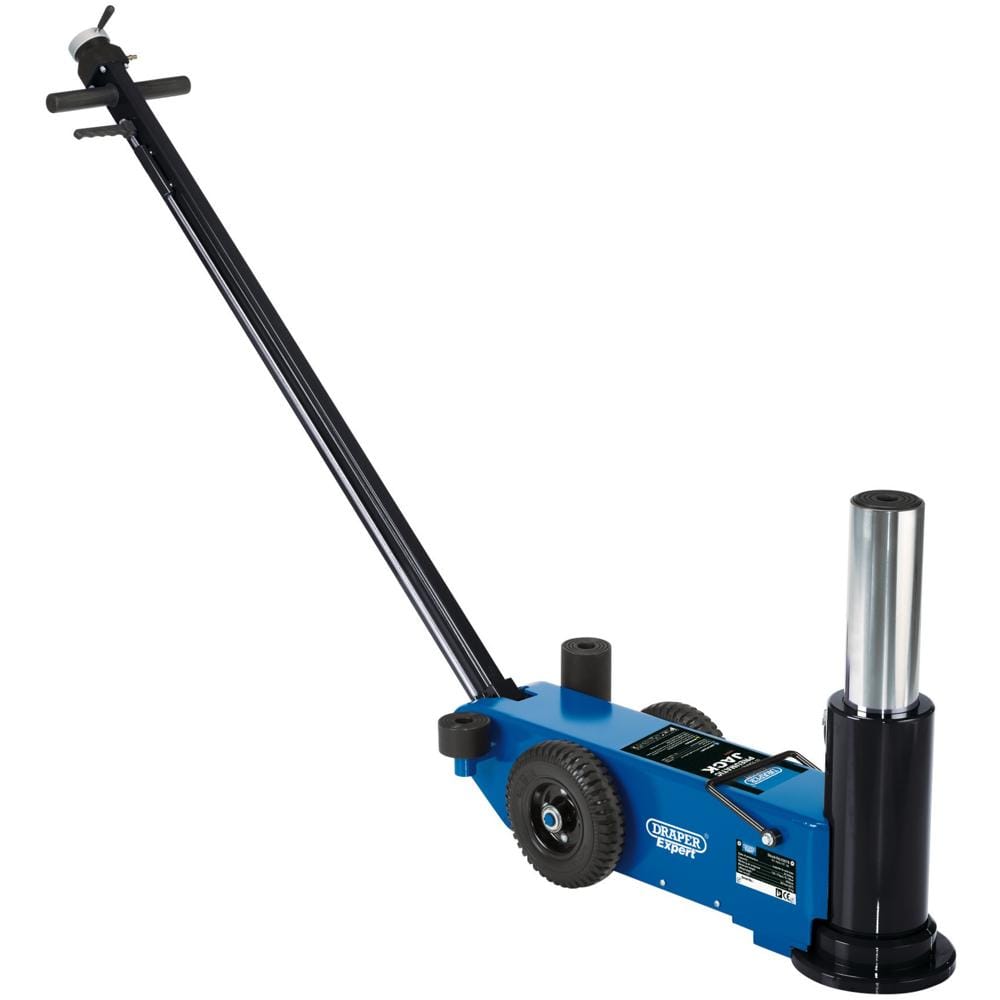

Draper Expert PJ30HL Pneumatic High Lift Jack

The Draper Expert PJ30HL is a heavy-duty pneumatic trolley jack designed for lifting commercial vehicles, agricultural machinery, and plant equipment up to 30 tonnes capacity. This single-stage high lift jack combines portability with substantial lifting power, making it ideal for workshops, farms, and commercial vehicle maintenance environments.

Engineered with safety and durability in mind, the jack features an ergonomic handle fitted with a 'Slow Down' valve for controlled lowering and a 'Self-Return' switch for easier operation. Industrial quality seals extend the working life of the unit, whilst a safety overload valve provides additional protection during use. The rubber-coated twin wheels deliver quieter operation, protect workshop and garage floors from damage, and improve manoeuvrability when positioning the jack.

Operating at 9-12 BAR (130-174 psi) with an air consumption of 11.5cfm, the PJ30HL connects via a standard 1/4" BSP airline fitting. The jack is supplied with 45mm and 100mm height lift extensions, allowing a maximum working height of 772mm with extensions fitted. Manufactured, tested and certified to EN1494 standard, this agriculturally-focused jack is particularly suited to lifting tractors, commercial vehicles, and heavy plant machinery where traditional trolley jacks lack sufficient capacity.

Features and Benefits:
• 30 tonne lifting capacity for heavy commercial vehicles and agricultural machinery
• Ergonomic handle with 'Slow Down' valve and 'Self-Return' switch for enhanced safety
• Industrial quality seals for extended service life
• Rubber-coated wheels protect floors and reduce operational noise
• Supplied with 45mm and 100mm height extensions for versatile lifting applications
• Safety overload valve prevents exceeding rated capacity
• EN1494 certified for professional workshop use

Specifications:
Air Consumption: 11.5cfm
Air Inlet: 1/4" BSP
Capacity: 30 Tonne (30,000kg)
Chassis Dimensions: 840 x 215 x 360mm
Handle Length: 1380mm
Lifting Height: 267mm
Max Height: 772mm (inc extensions)
Min Height: 360mm
Nett Weight: 87kg
Operating Air Pressure: 9 – 12BAR (130 – 174psi)
Saddle Diameter: 83.6mm
Wheel Diameter: 200mm
Wheel Width: 55.5mm

Contents:
1 x Pneumatic High Lift Jack, 30 Tonne
