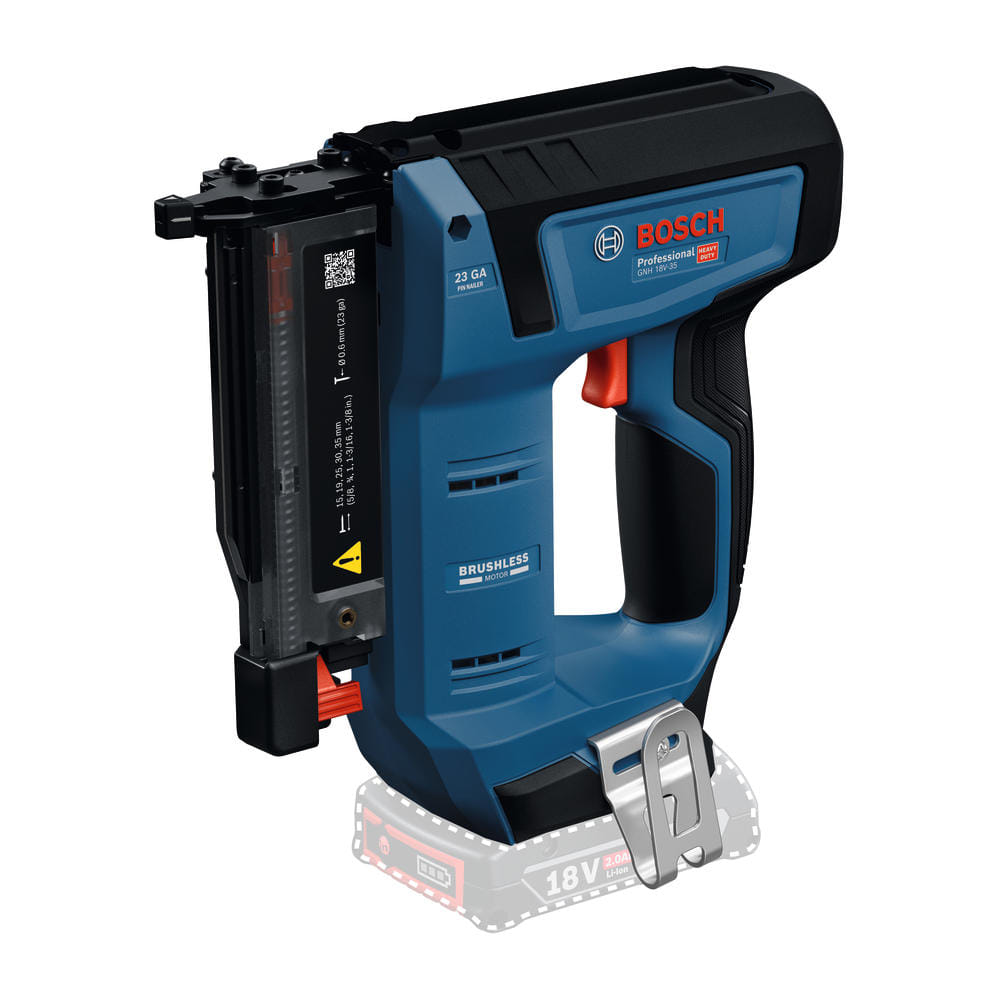

Bosch GNH 18V-35 18v Cordless Pin Nailer

The Bosch GNH 18V-35 is an 18V cordless pin nailer designed for precision fastening in delicate woodworking applications, accepting 23-gauge pins from 15 to 35 mm in length.

Running on an 18V brushless motor paired with an optimised coil spring system, this pin nailer delivers consistent driving power at full depth without compromise. The brushless motor also contributes to longer tool life and reduced maintenance compared to brushed alternatives.

Where finish quality matters most, the GNH 18V-35 excels. Reduced recoil and no-mar pads — available in different contact areas to suit various applications — ensure the workpiece surface remains mark-free throughout. Accurate guiding of both the driver blade and pin means reliable results even at awkward angles.

The tool is well suited to fitting decorative trims and mouldings on furniture and buildings, as well as fixing glazing beads into doors, furniture, and interior walls. Stepless depth adjustment allows quick, precise setting for varying material thicknesses, while a dry fire lock-out prevents blank firing when the magazine runs empty, protecting both the workpiece and the tool.

A contact trigger supports both single sequential and full sequential actuation, with an LED work light and belt hook included for on-site convenience.

Features and Benefits:
• No-mar pads with multiple contact area options keep workpiece surfaces mark-free
• Brushless motor and optimised coil spring system deliver consistent full-power pin driving
• Accurate driver blade and pin guidance ensures precision at odd angles
• Stepless depth adjustment for quick, tool-free depth setting
• Dry fire lock-out prevents blank firing when the magazine is empty
• Dual actuation modes — single sequential and full sequential — via contact trigger
• LED work light and belt hook included for practical site use

Specifications:
Battery voltage: 18V
Nail type: Pin (23 gauge)
Nail length: 15–35 mm
Nail diameter: 0.6 mm
Collation angle: 0°
Magazine capacity: 110 pins
Triggering system: Single sequential actuation + Full sequential actuation
Weight (without battery): 1.7 kg
Length: 232 mm
Width: 81 mm
Height: 214 mm
Sound pressure level: 88 dB(A)
Sound power level: 99 dB(A)
Noise uncertainty K: 3 dB
Vibration emission value (ah): 2.5 m/s²
Vibration uncertainty K: 1.5 m/s²
Batteries included: No

Contents:
1 x belt hook (2 609 111 584)
