Sealey Portable Handheld 240v Electric Winch

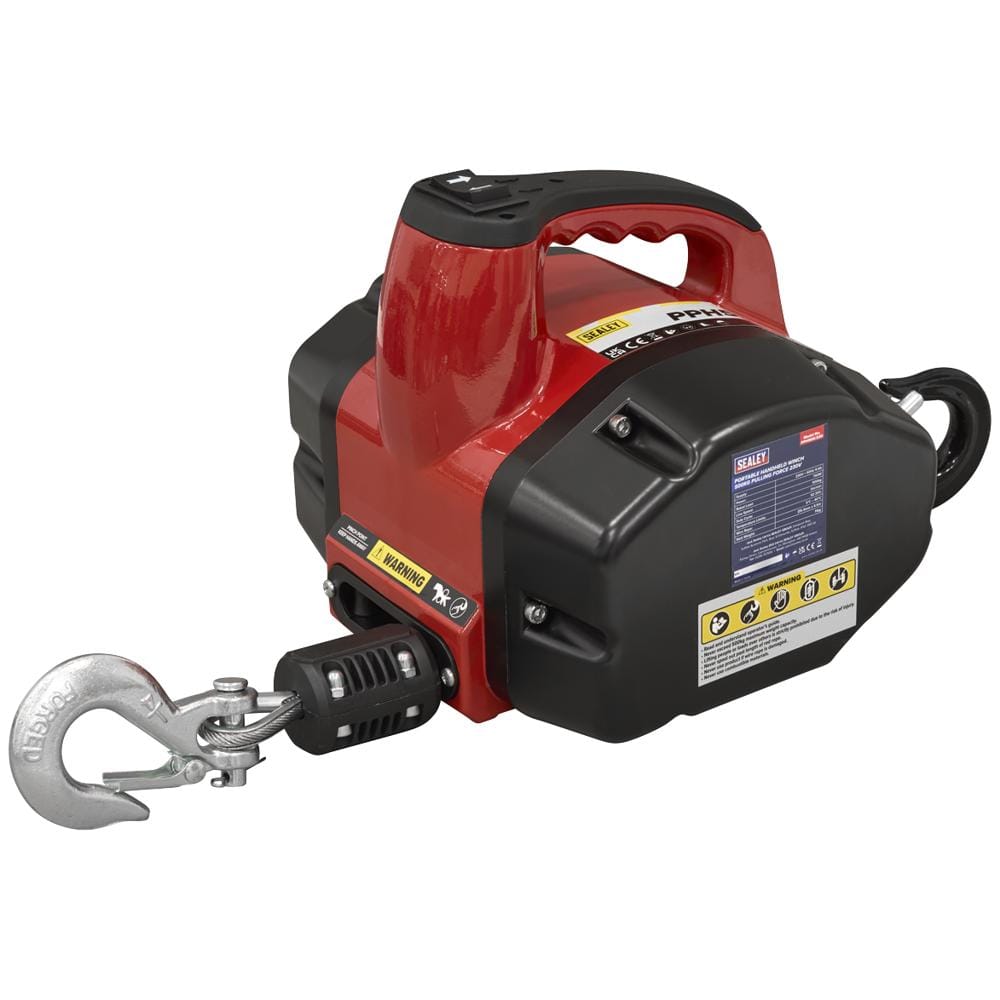

The Sealey PPH500/230 is a portable handheld 240V electric winch with a 500kg single-cable pulling capacity, designed for lifting and hauling tasks on site.

Powered by a 0.75kW motor, this compact electric winch delivers a consistent 500kg pull with a maximum lift speed of 2m/min, making it a practical choice for contractors and tradespeople who need reliable powered lifting without the bulk of a fixed installation. At just 11kg, it can be moved between locations with ease.

Safety is well considered throughout the design. The unit features automatic overload detection that shuts the motor down if the safe working limit is exceeded, and an emergency stop button provides instant shutdown when needed. The IP50 rating offers a degree of protection against dust ingress in workshop or site environments.

The grooved drum keeps the wire neatly guided during winding, preventing tangling, overlapping, or kinking. An end stopper ensures a portion of the wire always remains accessible outside the drum, avoiding the frustration of a fully retracted cable.

Features and Benefits:
• 500kg consistent pull capacity on single cable
• Automatic overload protection shuts unit off to safeguard the user
• Emergency stop button for instant halt of all operations
• Grooved drum prevents wire tangling, overlapping, and kinking
• End stopper keeps a portion of wire accessible at all times
• Portable 11kg design suitable for use across multiple locations
• IP50 rated for use in dusty working environments

Specifications:
Model No: PPH500/230
Brand: Sealey
Capacity (Single Cable): 500kg
IP Rating: IP50
Lift Speed (Maximum): 2m/min
Motor Power: 0.75kW
Nett Weight: 11kg
