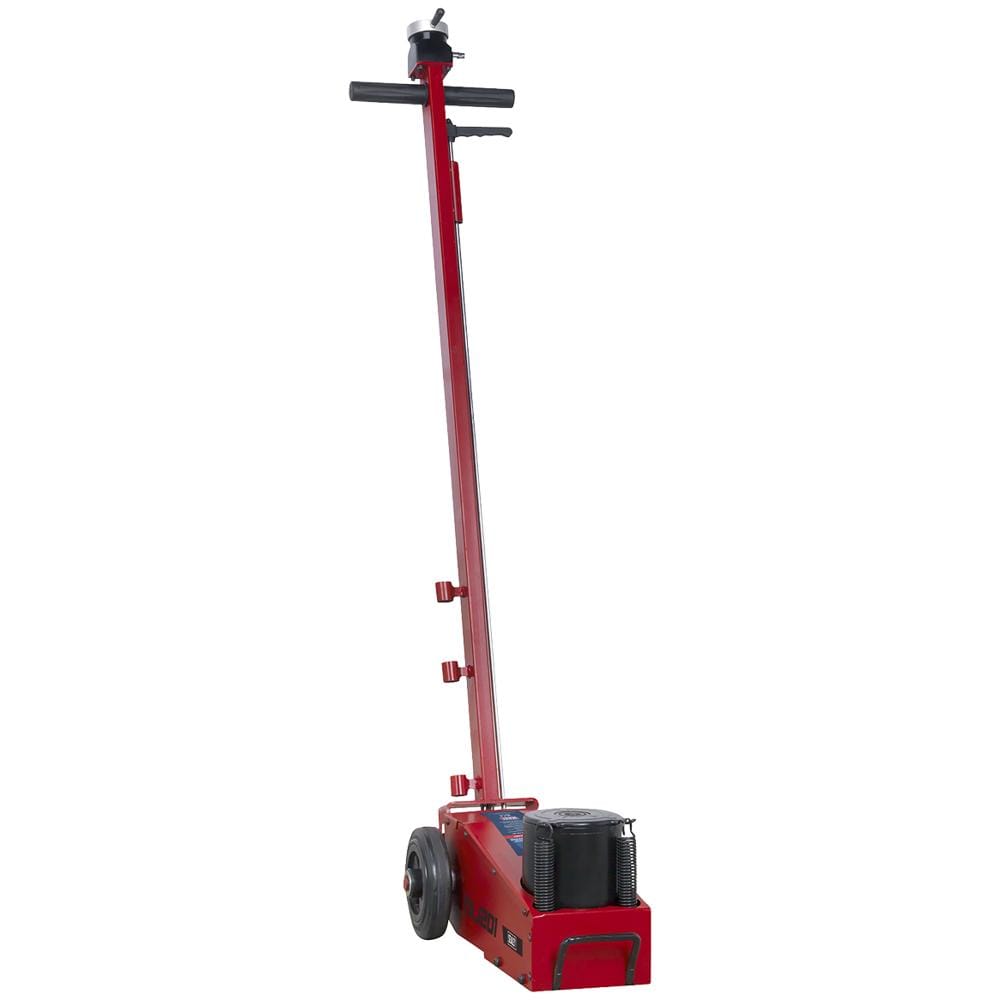

Sealey Air Operated Trolley Jack

The Sealey 20 Tonne Air Operated Trolley Jack delivers reliable lifting power for medium to heavy commercial vehicles, tractors and plant equipment. This capacity makes it ideal for standard commercial vehicle maintenance and repair work in both workshop and roadside environments.

Designed for safe and efficient operation, this air-operated jack eliminates the physical effort associated with manual pumping, allowing operators to lift heavy loads quickly and with minimal fatigue. The integrated dead man's handle provides enhanced safety by requiring continuous pressure to maintain operation, whilst simultaneously enabling controlled lowering speed for precise positioning of vehicles during maintenance procedures.

Supplied complete with extension adapters, this 20 tonne jack closes the gap between the saddle and various vehicle jacking points, ensuring secure contact and safe lifting across different vehicle types.

Features and Benefits:
• 20 tonne lifting capacity for commercial vehicles and plant equipment
• Air operation for effortless, rapid lifting performance
• Dead man's handle for enhanced operator safety
• Controlled lowering speed for precision vehicle positioning
• Includes extensions for versatile jacking point compatibility

Specifications:
Air Consumption: 10.5cfm
Brand: Sealey
Capacity: 20 Tonne
Chassis Length: 525mm
Extensions: 20/50/100mm
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 456/20
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
Maximum Length: 1765mm
Minimum Saddle Height: 215mm
Nett Weight: 30kg
Overall Width: 265mm
Piston Stroke: 141mm
Screw Extension: n/a
Width without Wheels: 133mm
Working Pressure: 116-174psi
Min./Max. Height: 215/456mm.
