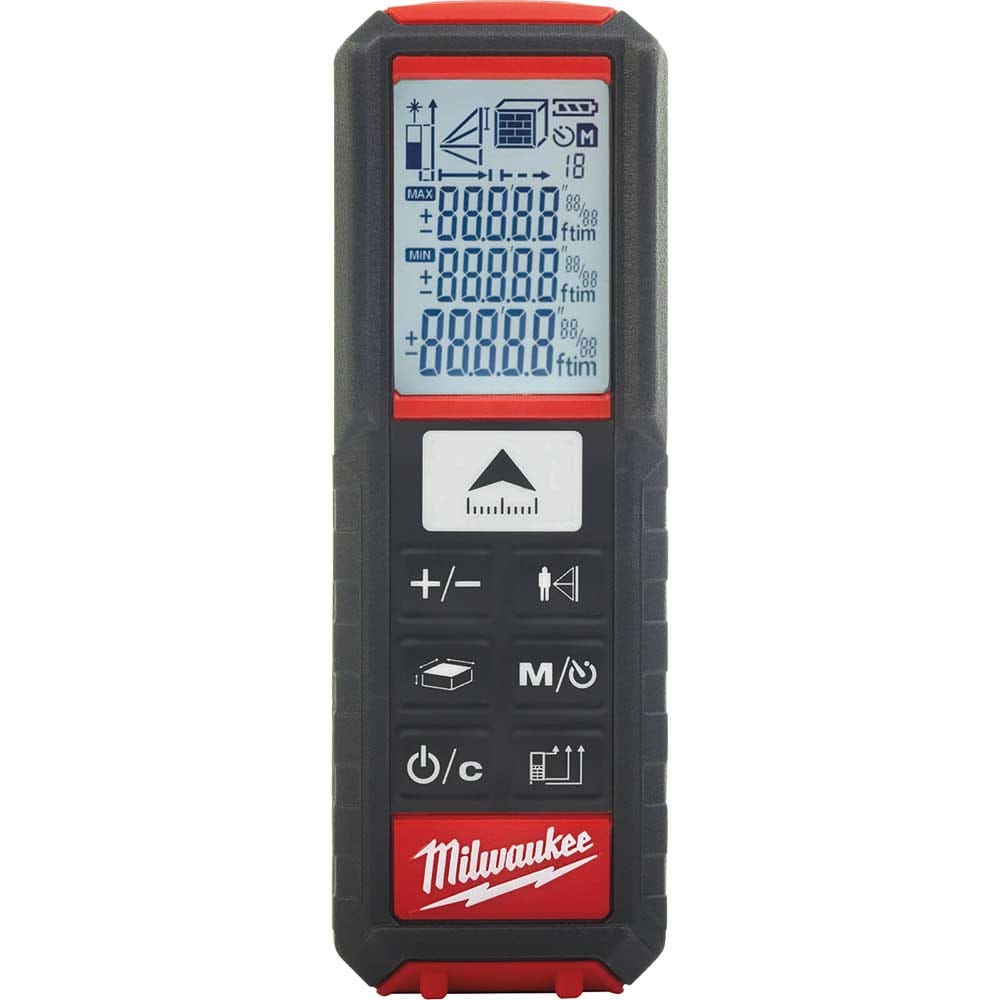

Milwaukee LDM 50 Laser Distance Measure

The Milwaukee LDM 50 Laser Distance Measure is a compact, professional-grade laser distance meter offering a measuring range of up to 50 metres with ±1.5mm accuracy — ideal for construction, installation and surveying applications.

Designed for one-person operation, the LDM 50 delivers fast, reliable measurements at the press of a button. Beyond simple distance measuring, it includes area, volume and indirect height calculation functions, making it a versatile tool for estimating and layout tasks on site.

The integrated Pythagoras functions support 2-point, 3-point and partial-height calculations, useful for determining heights and distances where direct measurement isn't possible. A fold-out end piece ensures accuracy when measuring from corners, edges or awkward locations, while continuous tracking mode with minimum and maximum sweep adds further flexibility for contractors working across varied environments.

Built for professional use, the LDM 50 features a three-line graphical LCD display with automatic white backlighting for clear visibility in all conditions. Memory storage for the last 20 measurements allows quick recall without repeating work. The slim, IP54-rated housing provides reliable dust and water protection on site, and an integrated belt clip keeps the device accessible throughout the working day.

Features and Benefits:
• Measuring range up to 50 metres with ±1.5mm accuracy
• Area, volume and indirect height calculation functions
• Pythagoras functions for 2-point, 3-point and partial-height measurements
• Continuous tracking mode with minimum and maximum measurement sweep
• Distance addition and subtraction for fast layout work
• Fold-out end piece for accurate corner and edge measurements
• Three-line graphical LCD display with automatic white backlight
• Stores last 20 measurements for quick recall
• IP54-rated dust and water protection
• Compact slimline housing with integrated belt clip
• Automatic shut-off and low battery indication

Specifications:
Measurement Range: 0.05 - 50m
Maximum Measurement Distance: 50m
Accuracy: ±1.5mm
Laser Classification: Class 2
Display Type: 3-Line LCD Graphical Display
Display Size: 26 x 37mm
Pythagoras Function: 2-Point, 3-Point and Partial Height
Area Measurement: Yes
Volume Measurement: Yes
Continuous Tracking: Yes
Distance Addition & Subtraction: Yes
Memory Capacity: Last 20 Measurements
Height Tracking: No
Auto-Level Measurements: No
Inclination Sensor: No
IP Rating: IP54
Thread Size: 1/4"
Dimensions: 119 x 40 x 32mm
Battery Type: 2 x AAA Batteries

Contents:
Milwaukee LDM 50 Laser Distance Measure
2 x AAA Batteries
Belt Clip
