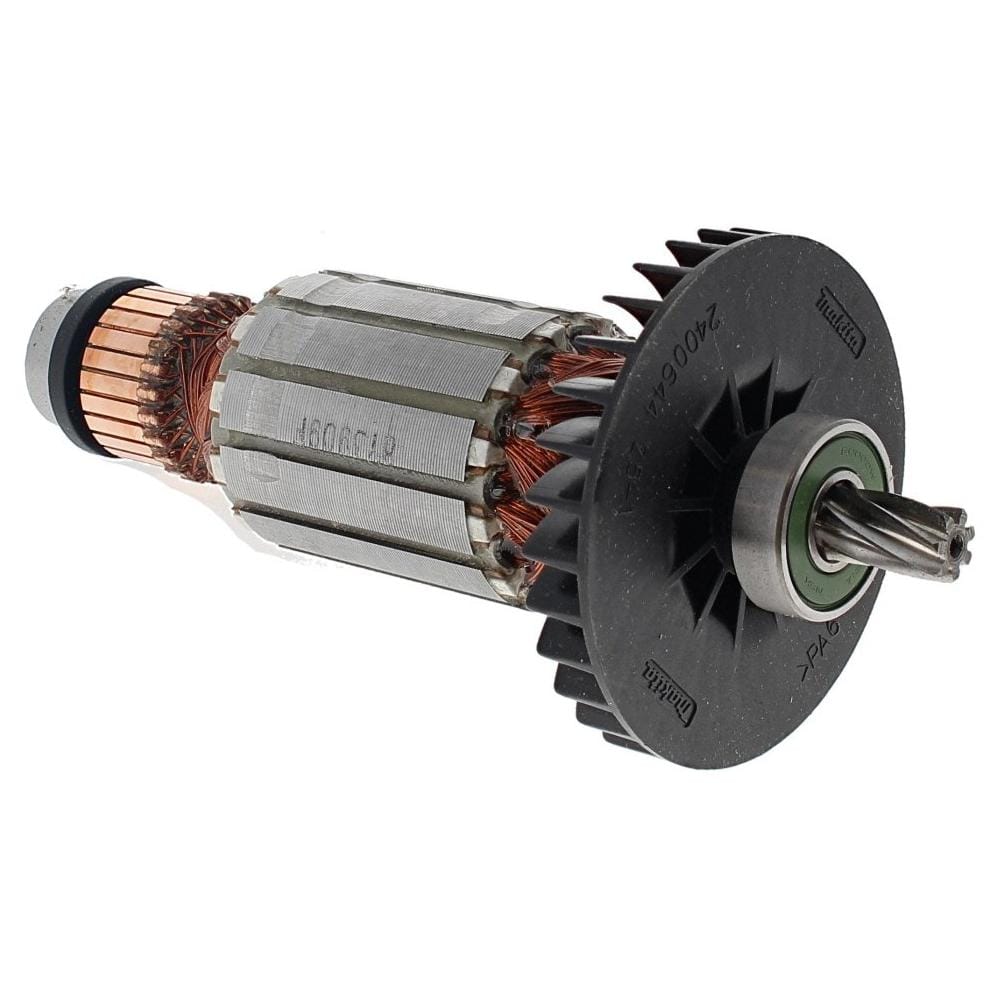

Makita Genuine 513909-2 Armature Assembly 240v for Makita HS7601 Circular Saw
The Makita 513909-2 Armature Assembly is a genuine OEM replacement motor rotor for the Makita HS7601 240V circular saw, designed to restore full cutting performance after armature failure.
Built on a laminated steel core with tightly wound high-conductivity copper windings, the armature delivers smooth, consistent power transfer under load. A precision-machined commutator promotes stable brush contact and reduces sparking during operation, while the integrated cooling fan helps manage motor temperature across extended periods of use.
The shaft features a correctly profiled pinion machined to engage cleanly with the HS7601 gear train, ensuring proper meshing and protecting long-term gear life. Factory balancing minimises vibration during cutting, contributing to cleaner results and reduced operator fatigue on site or in the workshop.
Rated at 240V to match UK mains-powered tools, this is a direct-fit replacement requiring no modifications. When carrying out this repair, it is advisable to inspect the field coil and carbon brushes for wear and replace them if necessary. Fitting a genuine Makita part ensures the motor returns to its original specification for speed, torque, and efficiency.
Features and Benefits:
• Genuine Makita OEM part (MPN 513909-2) for assured compatibility with the HS7601
• 240V specification engineered for UK mains-powered circular saws
• Factory balanced to reduce vibration and improve cut quality
• High-conductivity copper windings with durable insulation for long service life
• Precision commutator for stable brush contact and reduced sparking
• Integrated cooling fan to manage motor temperature during continuous use
• Correctly machined pinion for smooth engagement with the HS7601 gearbox
• Direct-fit replacement — no modifications required
• Restores original power, speed stability, and cutting efficiency after armature failure
Specifications:
Voltage: 240V
Compatible Model: Makita HS7601
Manufacturer Part Number: 513909-2
