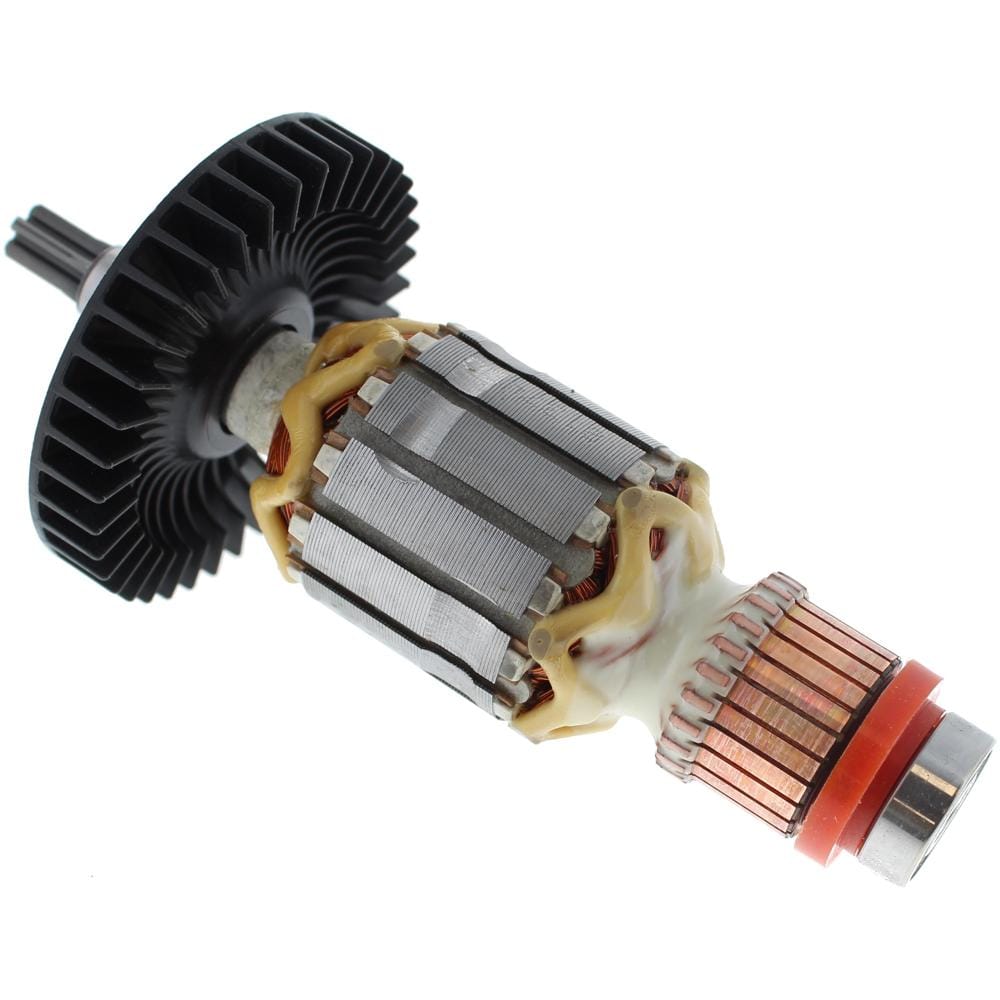

Makita Genuine 513748-0 Armature Assembly 240v for Makita HR3210, HR354 Hammer Drills

The Makita 513748-0 Armature Assembly is a genuine replacement part designed to restore motor drive and power delivery to Makita HR3210C and HR3540C hammer drills.

Built around a laminated steel core with tightly wound copper coils, a precision-machined commutator and a hardened rotor shaft, the assembly converts electrical energy into the rotational force required for consistent drilling and hammer performance. Rated at 240 V for UK mains operation, it matches the original electrical specification to ensure safe and reliable running.

This armature is the direct solution for common motor failure symptoms, including loss of torque, excessive sparking at the brushes or a burning smell caused by a worn rotor. Replacing the armature with a genuine Makita component restores the tool to the manufacturer's standard, maintaining correct mechanical and electrical characteristics throughout.

As a like-for-like replacement, the assembly is compatible with existing housings and gear assemblies in the listed models and can be fitted using standard workshop tools in line with Makita service guidance. Its precision-balanced rotor helps minimise vibration and reduce wear on surrounding components, making it a sound choice for contractors and service technicians maintaining tools in regular site use.

Features and Benefits:
• Genuine Makita part (513748-0) for assured fit and compatibility with HR3210C and HR3540C models
• 240 V rated for UK mains tools, matching the original electrical

Specifications:
Voltage: 240 V
Compatible Models: Makita HR3210C, HR3540C
Part Number: 513748-0
