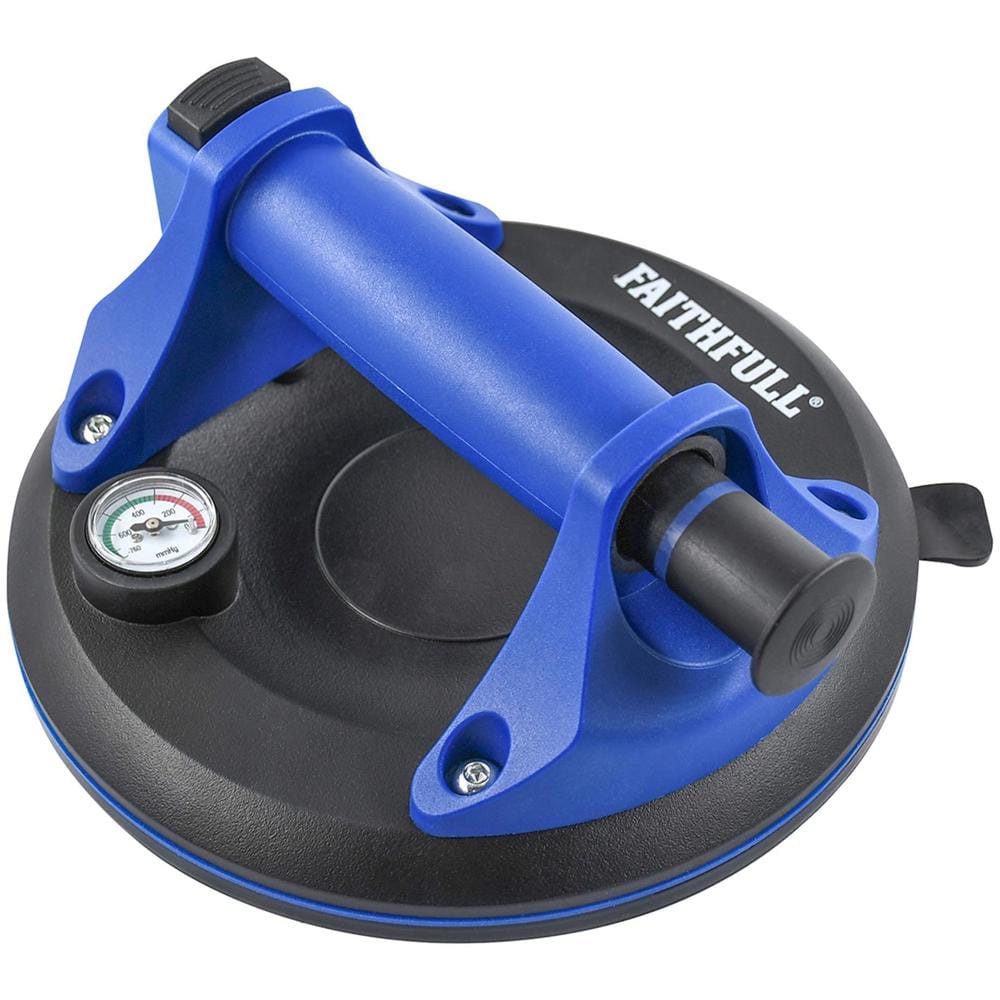

Faithfull Pump Action Suction Pad Gripper and Pressure Gauge

The Faithfull Pump Action Suction Pad Gripper and Pressure Gauge is a single-pad vacuum lifter designed for the secure handling of heavy, flat, non-porous materials on site.

Suitable for use with glass, sheet metal, large tiles, and marble, it provides a reliable grip during installation and servicing tasks where conventional handling methods are impractical or unsafe. The 200mm suction pad delivers a strong hold, supported by a built-in thumb-operated pump that allows the operator to build and maintain suction pressure as required.

A clear pressure indicator dial with a red/green guide takes the guesswork out of safe lifting — green confirms adequate suction, while red signals that additional pumping is needed before the load should be raised. A dedicated release button on the opposite side of the handle allows for quick, controlled detachment once the lift is complete.

With a maximum load capacity of 120kg, this suction gripper is well suited to demanding trade applications including glazing, tiling, and sheet material handling. Always assess the total load before lifting and do not exceed the stated maximum capacity.

Features and Benefits:
• 200mm suction pad for a secure grip on flat, non-porous surfaces
• Thumb-operated pump to build and maintain suction pressure with ease
• Red/green pressure indicator dial for clear, at-a-glance lift safety confirmation
• Quick-release button for safe and controlled detachment
• Supports loads up to 120kg, suitable for heavy trade materials

Specifications:
Lifter Type: Single
Suction Pad Diameter: 200mm
Maximum Load Capacity: 120kg (264lbs)
