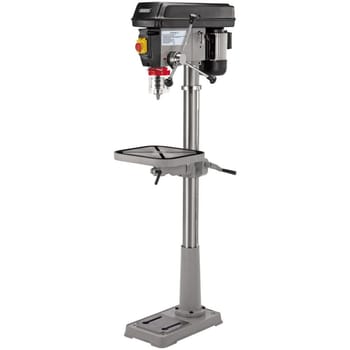

Draper GD25/12EF 16 Speed Floor Standing Pillar Drill

The Draper GD25/12EF is a heavy-duty floor standing pillar drill offering 16 speed settings from 160 to 3,000rpm, making it suitable for a wide range of drilling applications in automotive and maintenance workshops. With a 25mm drilling capacity and MT2 spindle taper, this robust machine is designed to handle demanding workshop tasks with precision and reliability.

Built with a steel motor casing and lockable pulley cover, this pillar drill delivers professional-grade performance backed by solid construction. The 356 x 356mm square table features a smoothly operated rack and pinion mechanism for precise height adjustment, whilst the 255mm throat depth provides ample working space for larger workpieces.

Safety features include a No-Volt release switch that prevents accidental start-up after power interruption, a depth stop for consistent hole depths, and a chuck guard for operator protection. The 5-20mm chuck capacity covers most standard drilling operations, and the unit comes supplied with a BS approved non-rewireable moulded plug and 1.8m cable for immediate use.

Features and Benefits:
• Smooth running rack and pinion for precise table adjustment
• No-volt safety release switch prevents accidental start-up
• Depth stop ensures consistent drilling depths
• Chuck guard provides operator protection
• Steel motor casing and lockable pulley cover for durability
• 16 speed settings from 160-3,000rpm for versatile applications

Specifications:
Height: 1,635mm
Speed: 16 (160-3,000rpm)
Weight: 86kg
Base size: 485 x 290mm
Chuck capacity: 5-20mm
Collar diameter: 60mm
Column diameter: 80mm
Drilling capacity: 25mm
Spindle taper: MT2
Spindle travel: 80mm
Table size: 356 x 356mm
Throat depth: 255mm

Contents:
1 x 16 Speed Floor Standing Drill, 1100W
