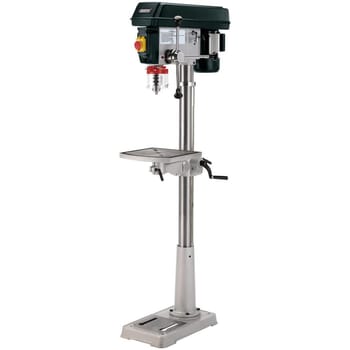

Draper GD20/12EF 12 Speed Floor Standing Pillar Drill

The Draper GD20/12EF is a robust floor standing pillar drill designed for automotive and maintenance workshops requiring precision drilling up to 20mm capacity. This 12-speed drill delivers variable speeds from 180 to 2,740rpm, making it suitable for working with different materials and drill bit sizes. The steel motor casing and lockable pulley cover provide durability in demanding workshop environments.

The 305 x 305mm square work table features a smoothly operated rack and pinion mechanism for precise height adjustment, whilst the 185mm throat depth allows adequate clearance for larger workpieces. Safety features include a No-Volt release switch to prevent automatic restart after power interruption, a chuck guard for operator protection, and an adjustable depth stop for consistent drilling depths. The 73mm diameter column provides rigidity during operation, essential for accurate drilling.

With an MT2 spindle taper and 80mm spindle travel, this floor standing drill is ideal for metal fabrication workshops, automotive repair facilities, and general maintenance operations. The 3-16mm chuck capacity accommodates standard drill bits, whilst the 64kg weight ensures stable operation when drilling harder materials. Supplied ready to use with a BS approved moulded plug and 1.8m cable.

Features and Benefits:
• Smooth running rack and pinion for precise table adjustment
• No-Volt safety release switch prevents automatic restart
• Adjustable depth stop for consistent drilling depths
• Chuck guard for operator protection
• Steel motor casing and lockable pulley cover for durability

Specifications:
Height: 1,635mm
Speed: 12 (180-2,740rpm)
Weight: 64kg
Base size: 485 x 290mm
Base dimensions: 485 x 280mm
Chuck capacity: 3-16mm
Collar diameter: 60mm
Column diameter: 73mm
Drilling capacity: 20mm
Spindle taper: MT2
Spindle travel: 80mm
Table size: 305 x 305mm
Throat depth: 185mm

Contents:
1 x 12 Speed Floor Standing Drill, 600W
