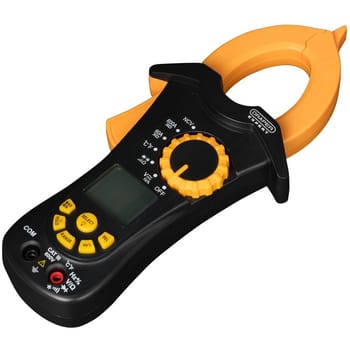

Draper Expert Digital Clamp Mulitmeter

The Draper Expert Digital Clamp Multimeter is a versatile testing instrument designed for measuring electrical parameters across both AC and DC circuits. This comprehensive diagnostic tool combines traditional multimeter functions with clamp meter capabilities, making it ideal for electricians, maintenance engineers and electrical contractors who need to measure current without breaking circuit connections.

The multimeter offers an extensive range of measurement functions, including voltage, current and resistance testing across AC and DC systems. Beyond these core capabilities, it can measure capacitance, frequency, diode performance and continuity, while the integrated temperature probe and non-contact voltage sensing add further diagnostic versatility. The clear LCD display features a convenient backlight that automatically switches off after 30 seconds to preserve battery life.

Designed with practical efficiency in mind, the meter automatically enters sleep mode after 15 minutes of inactivity, extending battery life during busy working days. The CAT III 600V/600A rating provides suitable protection for installation and distribution-level work. Supplied with a comprehensive probe and lead set including needle probes, test probes, test leads and crocodile clips, this multimeter arrives ready for immediate use across various electrical testing applications.

Features and Benefits:
• Measures voltage, current and resistance across AC and DC circuits
• Additional measurement capabilities including capacitance, frequency, diode, continuity and temperature
• Non-contact voltage sensing for added safety
• LCD display with automatic backlight shutdown
• Automatic sleep mode after 15 minutes conserves battery life

Specifications:
Meter rating: CAT III 600V/600A
Power: 4 x AAA batteries (not supplied)

Contents:
1 x Needle probe set (1 x 19.5mm)
1 x Test probe set (2 x 17.5mm)
1 x Test lead set (1,030mm - 18AWG)
1 x Crocodile clip set
