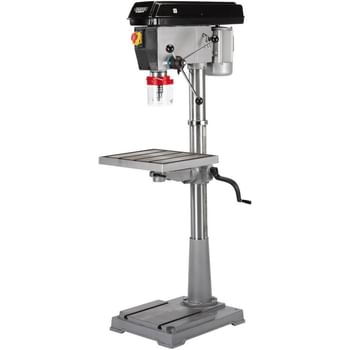

Draper DP150012E 12 Speed Heavy Duty Floor Standing Pillar Drill

The Draper DP150012E is a heavy duty 12 speed floor standing pillar drill with 32mm drilling capacity, designed for engineering and fabrication workshops. This robust workshop drill features a smoothly operated rack and pinion table adjustment system, making it ideal for precision metalworking and industrial drilling applications.

Built with an aluminium motor casing and lockable pulley cover, this pillar drill delivers professional performance across 12 speed settings ranging from 150 to 2,700rpm. The substantial 148kg weight provides the stability required for heavy duty drilling operations, whilst the square 475 x 425mm table offers a generous work surface for positioning materials accurately.

Safety features include a No-Volt release switch that prevents unexpected starts after power interruptions, plus an integrated chuck guard and depth stop for controlled drilling operations. The MT4 spindle taper and 3-16mm chuck capacity accommodate a wide range of drill bits, whilst the 255mm throat depth allows for drilling near the centre of larger workpieces. Supplied ready to use with a BS approved non-rewireable moulded plug and 2.0m cable.

Features and Benefits:
• Smooth running rack and pinion table adjustment for precise positioning
• No-volt safety release switch prevents accidental start-up
• Depth stop enables consistent drilling depths
• Chuck guard provides operator protection during use
• Lockable pulley cover enhances workshop security

Specifications:
Height: 1,710mm
Speed: 12 (150-2,700rpm)
Weight: 148kg
Base size: 580 x 450mm
Chuck capacity: 3-16mm
Collar diameter: 92mm
Column diameter: 92mm
Drilling capacity: 32mm
Spindle taper: MT4
Spindle travel: 120mm
Table size: 475 x 425mm
Throat depth: 255mm

Contents:
1 x Draper Expert 230V 12 Speed Heavy Duty Floor Standing Drill, 1500W
