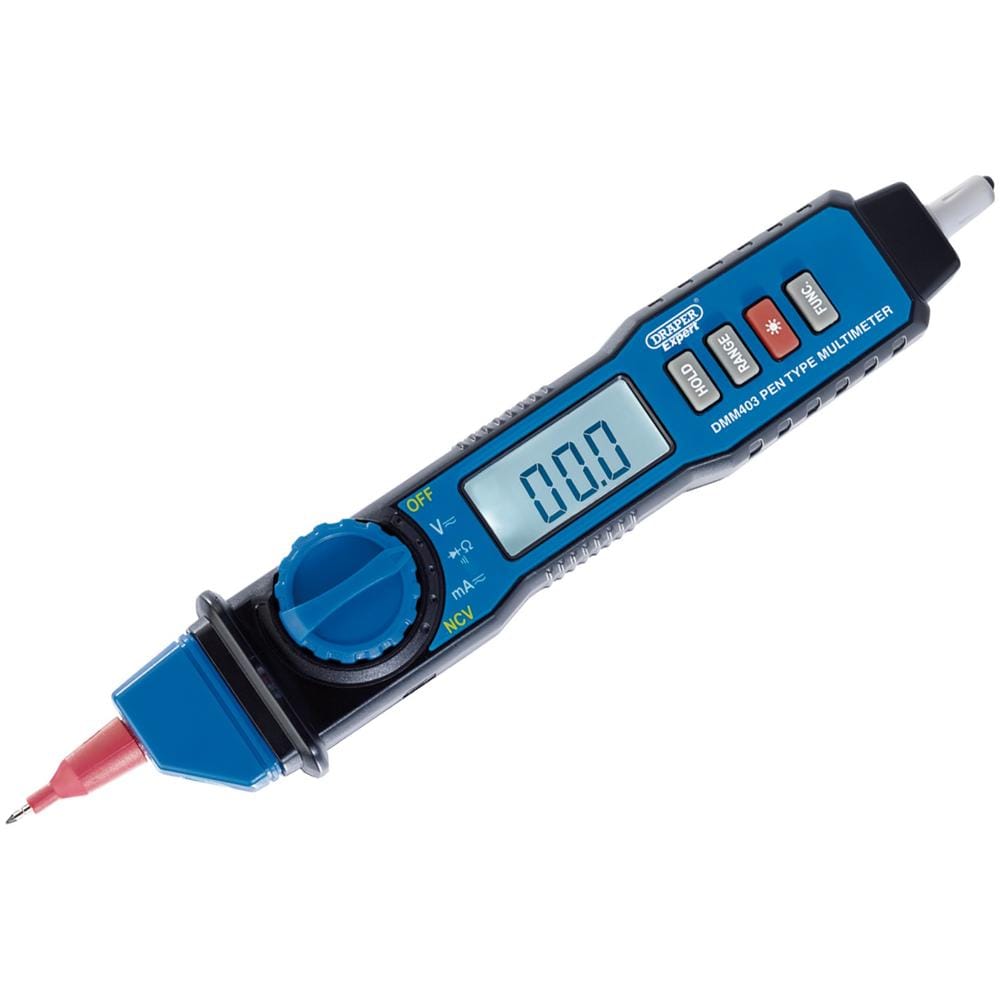

Draper DMM403 Pen Type Auto Ranging Digital Multimeter

# Output

The Draper DMM403 is a pen-type digital multimeter designed for voltage, current and resistance testing in electrical installations and maintenance work. Combining both auto and manual ranging capabilities, this compact multimeter provides the flexibility to switch between modes depending on your testing requirements, making it ideal for electricians, heating engineers and facilities maintenance professionals.

The backlit LCD display ensures clear readings even in poorly lit environments such as under-sink units, behind equipment or in service cupboards. For added convenience, the integrated inspection torch illuminates the work area, whilst the continuity buzzer provides instant audio confirmation when testing circuits. Non-contact voltage detection adds an extra layer of safety when working with live installations, allowing you to check for voltage presence before commencing work.

Built for practical trade use, the DMM403 features automatic power-off to preserve battery life and data hold functionality to capture readings in awkward positions. The unit measures resistance up to 20MO and handles both AC and DC voltage testing up to 600V, making it suitable for a wide range of domestic and commercial electrical testing applications. Complete with test leads and a protective carry case, this multimeter is ready to use straight from the box.

Features and Benefits:
• Auto and manual ranging for flexible testing across different applications
• Non-contact voltage detection for safer working with live circuits
• Backlit LCD and integrated inspection torch for working in low-light conditions
• Continuity buzzer provides instant audio confirmation during circuit testing
• Data hold function captures readings in difficult-to-access locations
• Supplied with test leads and carry case for immediate use and protected storage

Specifications:
AC Amps: 20mA/200mA
AC Current: 20mA/200mA
AC Voltage: 2V/20V/200V/600V
Automatic Power Off: Yes
Battery: 1 x 6F22 9V (not supplied)
Capacitance: N/A
DC Amps: 20mA/200mA
DC Current: 20mA/200mA
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 272mm x 132mm x 60mm
Duty Ratio: N/A
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200O/2kO/20kO/200kO/2MO/20MO
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: N/A
Weight: 306g (approx.)

Contents:
1 x Draper Expert Manual & Auto-Ranging Pen Type Digital Multimeter
