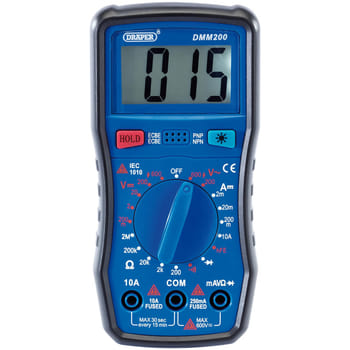

Draper DMM200 Digital Multimeter

The Draper DMM200 Digital Multimeter is a manual-ranging testing instrument designed for voltage, current, resistance and hEF measurement across a wide range of electrical applications. Ideal for automotive diagnostics and general electrical testing, this compact multimeter provides reliable readings for tradespeople and technicians working with DC and AC systems.

Featuring a backlit LCD screen for visibility in low-light conditions, the DMM200 includes practical features such as auto power-off to preserve battery life, a continuity buzzer for quick circuit testing, and a data hold function for recording measurements. The multimeter offers comprehensive DC voltage testing from 200mV up to 600V, DC current measurement up to 10A, and resistance testing across five ranges from 200O to 2MO.

With AC voltage capability up to 600V and temperature measurement ranging from -20°C to 1000°C, this manual-ranging multimeter handles diverse diagnostic tasks. The diode test function and duty ratio measurement add further versatility for automotive and electronic work. Supplied complete with test leads and a protective case, the unit measures 150mm x 74mm x 43mm and weighs approximately 233g, making it portable and convenient for on-site testing.

Features and Benefits:
• Manual ranging capable of voltage, current, hEF and resistance testing
• Backlit LCD screen for improved visibility in poor lighting conditions
• Auto power-off, continuity buzzer and data hold features for convenient operation
• Temperature measurement from -20°C to 1000°C for versatile diagnostic work
• Supplied with test leads and protective case for immediate use

Specifications:
AC Current: N/A
AC Voltage: 200V/600V
Automatic Power Off: Yes
Capacitance: N/A
DC Amps: 2mA/20mA/200mA/10A
DC Current: 2mA/20mA/200mA/10A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 150mm x 74mm x 43mm
Duty Ratio: Yes
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 200O/2kO/20kO/200kO/2MO
Symbol Unit Data Hold: Yes
TACH: N/A
Temperature Range: -20°C - 1000°C
Weight: 233g (approx.)
Battery Type: 1 x PP3 9V (not supplied)

Contents:
1 x Manual-Ranging Digital Multimeter
1 x Test Leads
1 x Case
