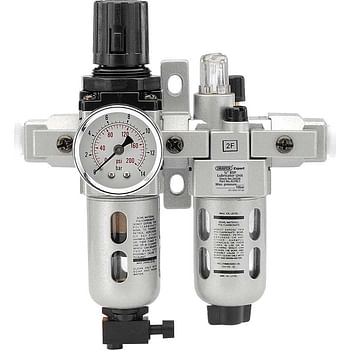

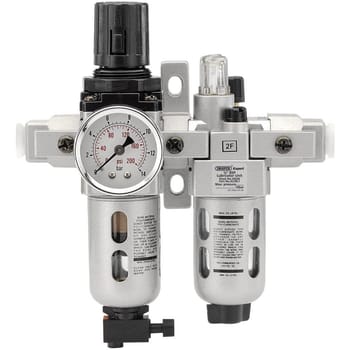

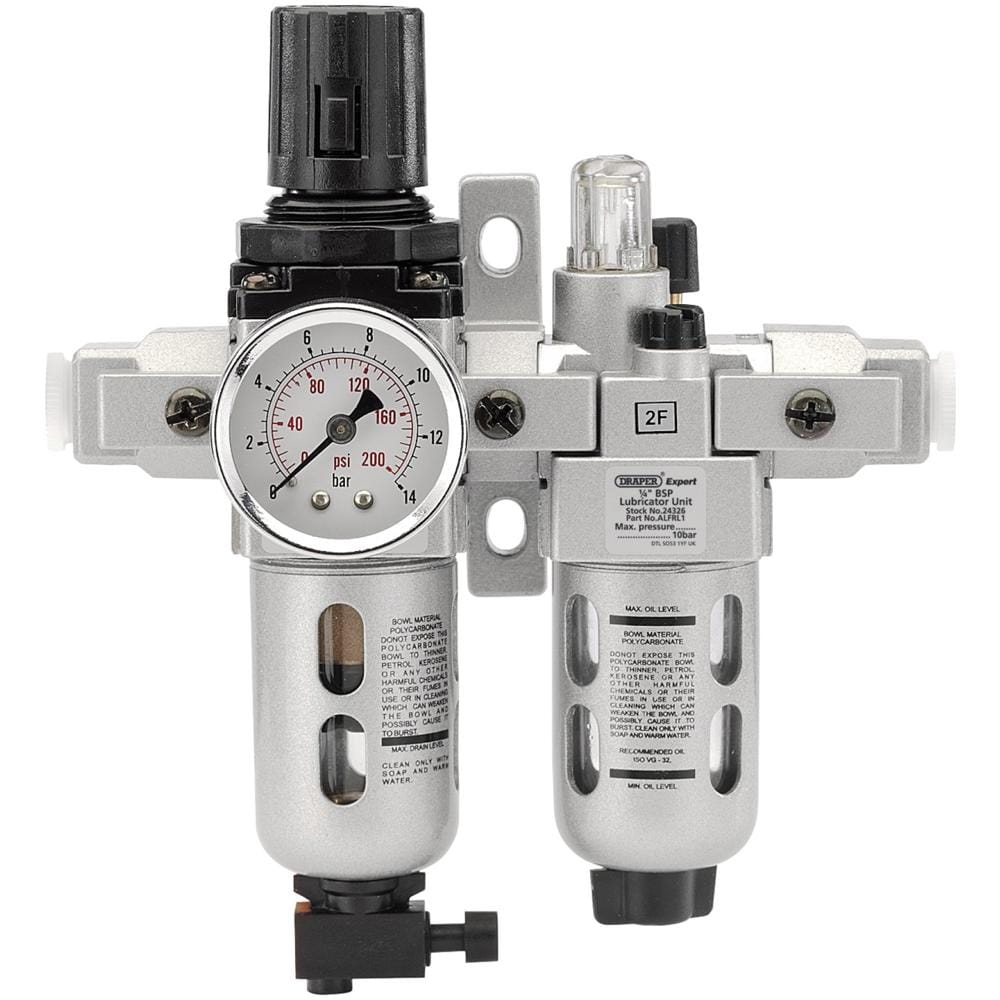

Draper ALFRL1 1/4" BSP Air Line Filter, Regulator and Lubricator

The Draper ALFRL1 is a 1/4" BSP air line filter, regulator and lubricator unit designed to control output air pressure whilst eliminating moisture and contaminants from compressed air systems. This essential FRL unit combines three critical functions in a single compact assembly, protecting pneumatic tools and ensuring optimal performance during use. The polycarbonate transparent bowl allows easy visual inspection of filter condition and oil levels, whilst the aluminium housing provides robust protection for workshop environments.

Fitted with a 40 micron filter, this unit effectively removes particulates that could damage air tools or compromise performance. The integral regulator controls output pressure to suit specific tool requirements, with a dual-marked gauge displaying readings in both bar and psi for convenient monitoring. Maximum inlet pressure is rated at 10bar/145psi, making it suitable for typical workshop compressor systems.

The unit features an integral locking device to maintain consistent pressure settings during operation, whilst the built-in lubricator ensures pneumatic tools receive the correct lubrication for extended service life. Supplied complete with a wall mounting bracket, the Draper ALFRL1 is ideal for fixed workshop installations where multiple air tools are used regularly, such as spray guns, impact wrenches, air ratchets and pneumatic grinders.

Features and Benefits:
• 40 micron filter removes moisture and contaminants to protect air tools
• Integral locking device maintains consistent pressure settings
• Dual marked gauge displays pressure in bar and psi
• Transparent polycarbonate bowl allows visual inspection
• Maximum inlet pressure 10bar/145psi for standard compressor compatibility

Contents:
• 1 x 1/4" BSP Combined Filter/Regulator/Lubricator Unit (FRL)
