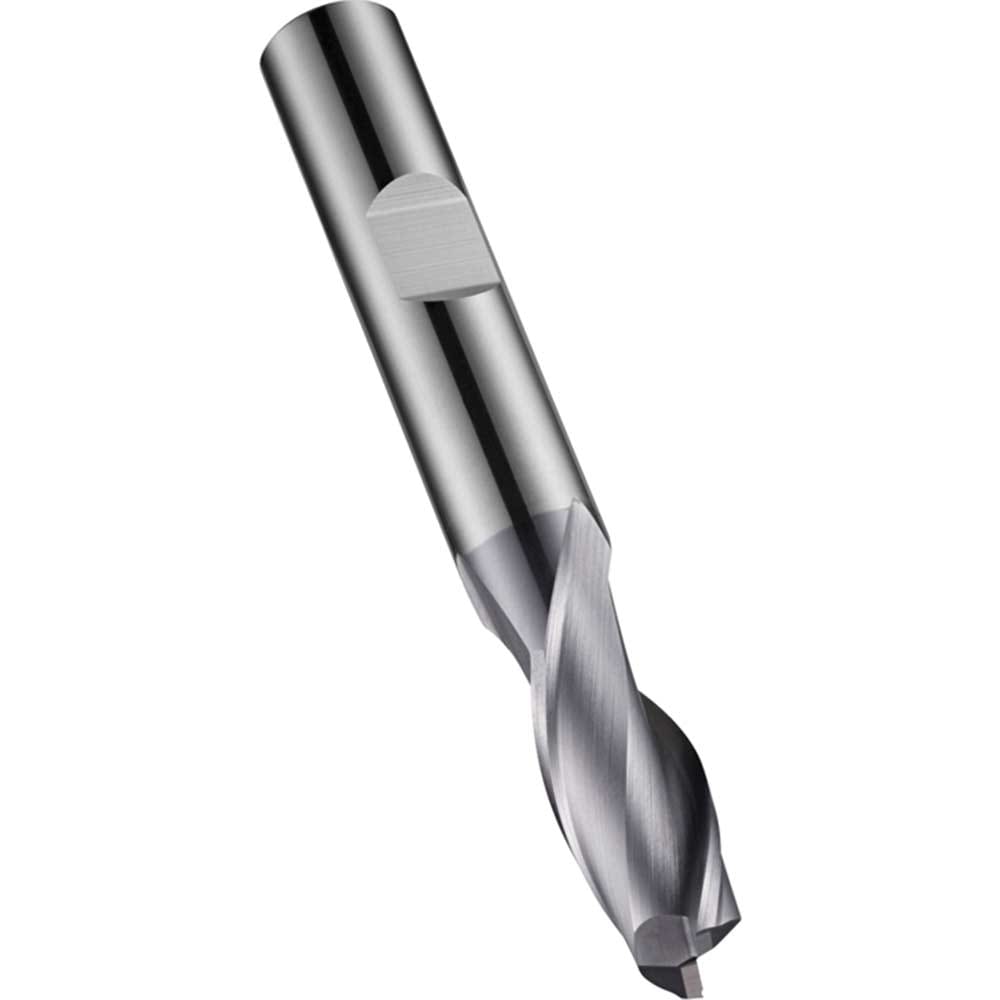

Dormer S922 Carbide TiALN MC-X Flatted Shank 2 Flute Slot Drill

The Dormer S922 Carbide TiALN MC-X Flatted Shank 2 Flute Slot Drill is a precision-engineered cutting tool designed for professional machinists and workshops requiring reliable performance across multiple materials. Manufactured from solid carbide and featuring an advanced TiAlN coating, this slot drill delivers exceptional tool life and temperature resistance during demanding milling operations.

The 2-flute design with a 30° helix angle provides high rigidity and efficient chip evacuation when milling standard slots. This geometry ensures stable cutting performance in steel and cast steel, cast iron, non-ferrous metals, and high-temperature alloys. The h10 tolerance class guarantees consistent dimensional accuracy, whilst the flatted shank design allows for secure tool holding and prevents slippage during operation.

Available in diameters from 2mm to 20mm, this comprehensive range accommodates diverse slot milling requirements from fine detail work to larger-scale applications. The medium cut length specification makes these tools versatile for general-purpose machining tasks in both professional fabrication shops and well-equipped workshops.

Features and Benefits:

• Shank: Cylindrical shank DIN 6535 HB

• Solid carbide construction for maximum rigidity and wear resistance
• TiAlN coating provides superior temperature resistance and extended tool life
• 2-flute design with 30° helix optimised for slot milling operations
• h10 tolerance class ensures precise, repeatable cutting performance
• Suitable for steel, cast iron, non-ferrous metals, and high-temperature alloys
• Flatted shank design prevents rotation in tool holder
