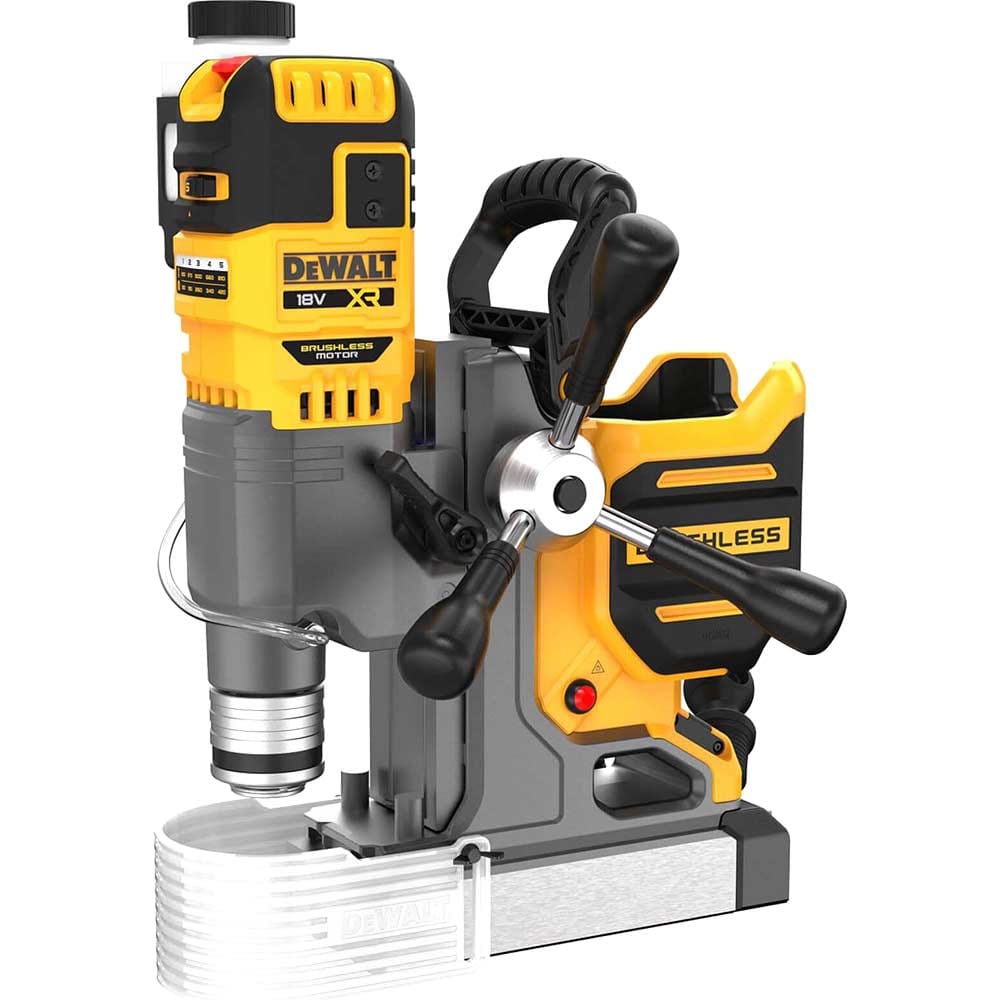

DeWalt DCD1623 18V XR Cordless Magnetic Drilling Machine

# DeWalt DCD1623 18V XR Cordless Magnetic Drilling Machine

The DeWalt DCD1623 is an 18V XR cordless magnetic drilling machine designed for drilling and tapping holes in structural steel, pipework, and heavy-gauge metal fabrications. With a maximum drilling capacity of 50mm using annular cutters, this powerful tool delivers professional performance for steel fabrication, mechanical installation, and structural engineering applications.

This magnetic drill features a brushless motor with FlexVolt Advantage technology, offering exceptional power efficiency and extended runtime when used with compatible batteries. Five electronic variable speeds combined with two mechanical speed transmissions provide optimal drilling speeds for both large and small diameter cutters, whilst the forward and reverse selector enables quick transitions from drilling to tapping operations. The integrated LED work light illuminates the work surface for improved accuracy and visibility in poorly lit environments.

Safety and reliability are enhanced through lift-off detection, which automatically cuts power when excess rotation is detected. The electromagnetic base provides a secure hold without requiring constant electrical power, making it safer and more reliable during operation. Ideal for steel erectors, metal fabricators, and maintenance engineers working with structural steel and heavy plate, this mag drill is supplied as a bare unit in a protective case.

Features and Benefits:
• Lift-off detection automatically cuts power when excess rotation is detected for enhanced safety
• Brushless motor with FlexVolt Advantage technology for improved runtime and performance
• Five electronic variable speeds and two mechanical transmissions for optimal drilling control
• Forward and reverse selector enables efficient drilling and tapping operations
• Electromagnetic base holds securely without requiring continuous electrical power
• Integrated LED work light illuminates the drilling area for improved precision

Specifications:
Battery Type: DeWalt XR Lithium-Ion
Voltage: 18V
Max Cutting Diameter: 50mm
Max Cutting Depth: 50mm
Speed (Mechanical): 130-420/250-810rpm
Variable Speed (Electronic): 130-810rpm

Contents:
DeWalt DCD1623N 18V XR Magnetic Drilling Machine
No Batteries
No Charger
Case
