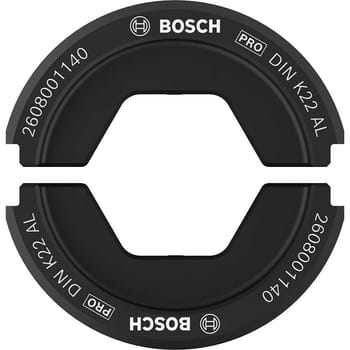

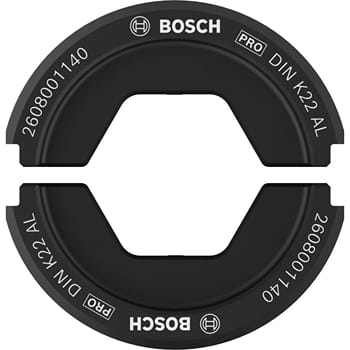

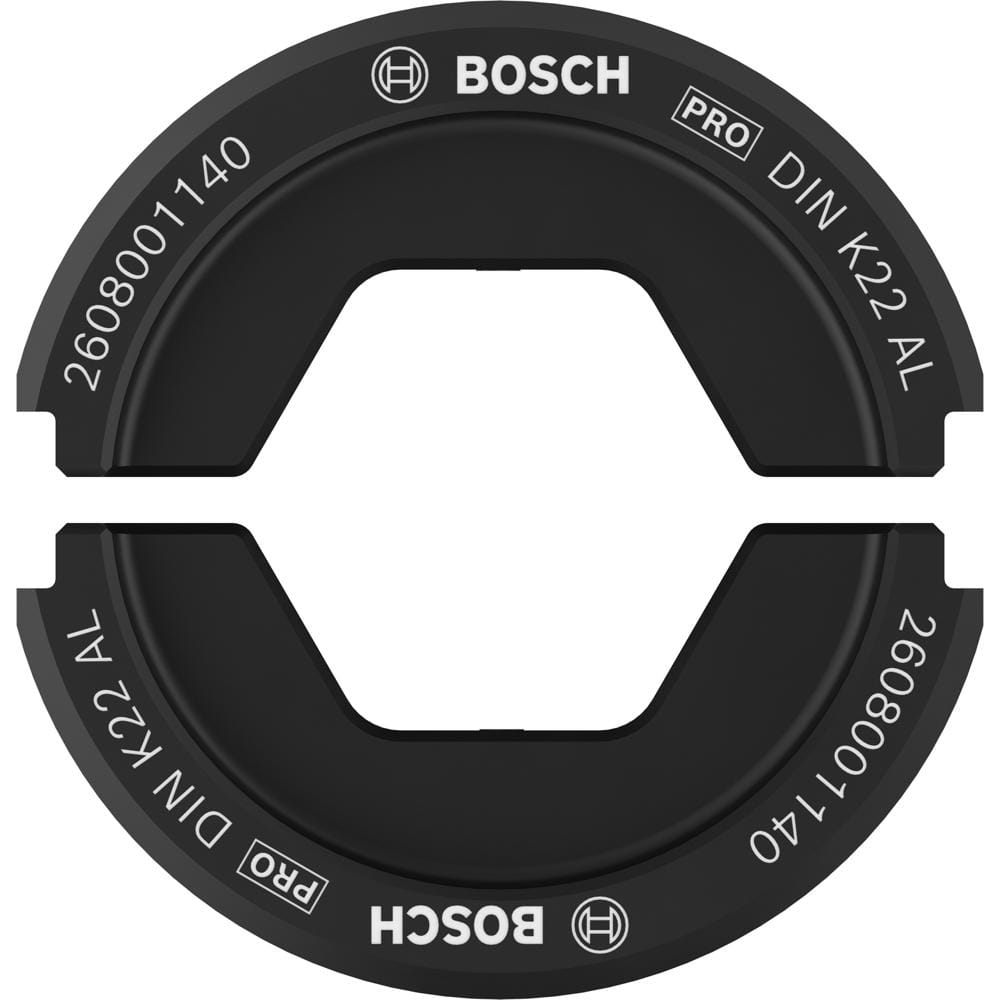

Bosch PRO Crimping Die DIN K22

The Bosch PRO Crimping Die DIN K22 is a replacement crimping die designed for use with hydraulic crimping tools, enabling electricians and contractors to create firm, secure connections on aluminium cable lugs and connectors.

Manufactured from high-quality hardened and tempered steel, this die is built for durability and consistent performance. It is compatible with DIN 46329 aluminium compression cable lugs and DIN 46267 connectors, making it suitable for a range of professional electrical installation and termination work.

The die features polished contact surfaces that contribute to improved crimping results, ensuring clean, reliable terminations every time. It is suitable for use with multi-stranded and fine-stranded conductors across a crimping range of 10–300mm².

Features and Benefits:
• Hardened and tempered steel construction for long-lasting reliability
• Polished contact surfaces for improved crimping accuracy and finish
• Compatible with DIN 46329 aluminium compression cable lugs and DIN 46267 connectors
• Suitable for multi-stranded and fine-stranded conductors

Specifications:
Size: 95mm² / 120mm²
Net Weight: 0.128kg
