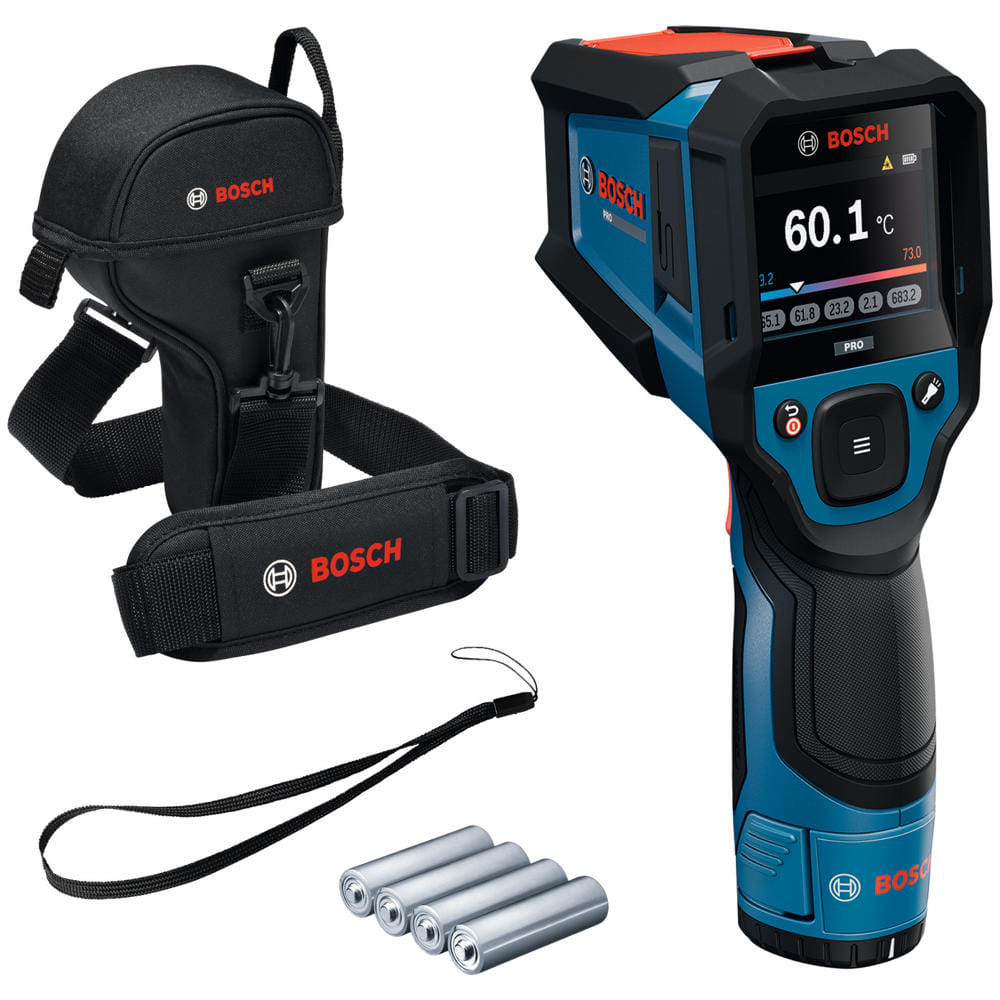

Bosch GIS 12V-800-16 12v Cordless Infrared Thermo Detector
The GIS12V-800-16 Infrared Spot Thermometer is built for precision and reliability. With IP54 certified dust and splash water protection and tested for 2 m drops, its robust design ensures durability in even the most demanding environments. The large graphical display provides clear readings, while the simple user interface makes operation straightforward. With professional-grade features like adjustable measurement parameters and a precise 20:1 spot size (D:S), this thermometer delivers accurate results for insulation evaluation, heat loss localization, and more.
This IR thermometer is suitable for a broad range of applications, including HVAC, renovation and industrial applications. You can use it to evaluate insulation, locate damp areas or repair heating and cooling systems with ease. Dual-use functionality allows operation with either a 12V power tool battery or an AA1 battery adapter, giving you the flexibility to adjust in different scenarios. Fast booting and quick temperature measurement saves you time, while the integrated LED light illuminates dark environments for seamless indoor use.
The GIS12V-800-16 stands out with its ability to perform accurate contact temperature measurements of reflective surfaces, liquids and direct airflow temperature using a Temperature Probe (Type K) – expanding its use cases beyond standard IR thermometers. It also supports higher temperature measurements and features two laser dots for easier alignment. Designed to bridge the gap between entry-level and expert tools, this thermometer empowers professionals with advanced capabilities – all while maintaining ease of use.
Features and Benefits:
• Precision for professionals with two laser, small spot size and advanced measurement settings like material catalogue
• Dual power options and expanded functionality with temperature probe (Type-K) interface, LED worklight and higher temperature measuring range for versatile applications
• Built to last: IP54 protection and 2 m drop resistance for reliable use in tough conditions
Specifications:
Net Weight of the product: 0.363 kg
Tool dimensions (L x W x H): 73 x 119 x 212 mm
Battery voltage: 4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Storage temperature, up to: 50.0 °C
Operating temperature, up to: 50.0 °C
Laser diode: 640 – 660 nm, <1 mW
Storage temperature: -20 – 50 °C
Operating temperature: -10 – 50 °C
Storage temperature, from: -20.0 °C
Operating temperature, from: -10.0 °C
Measurement range: -40 °C to +800 °C
Working range: 0.1 – 5 m
Shock protection: 2.0 m
Display type: TFT LCD
Battery type: 1.5 V LR6 (AA)
Net weight: 0.363 kg
Width: 0.0 mm
Dust and splash protection: IP54
Size of display: 2.4"
Measuring application: Spot temperature measurement
Power supply and runtime: 4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Measuring accuracy of IR: ± 1.5 °C
Focus distance, minimum: 0.100 m
Resolution: 0.100 °C
Optics: 20:1
Working range, up to: 5.0 m
Working range, from: 0.100 m
Contents:
Tool bag
Alkaline battery adapter
4 x 1.5 V LR6 battery (AA)
Number of batteries: 4.0 Pcs
