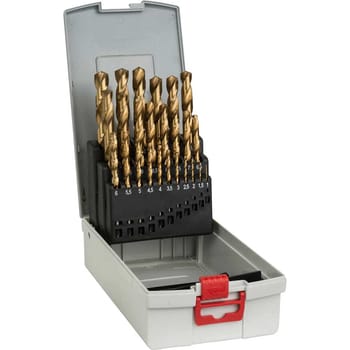

Bosch 25 Piece HSS-TiN Drill Bit Set
The Bosch 25 Piece HSS-TiN Drill Bit Set is a titanium-coated HSS twist drill bit set designed for drilling holes in steel and other metals.
Each bit is ground from high-speed steel (HSS) and finished with a titanium-nitride (TiN) coating. Used with the appropriate cooling agent, the coating keeps friction and wear to a minimum and extends the life of the bit. The high surface quality of the ground flutes also supports extended use.
This set suits alloyed and non-alloyed steel, malleable cast iron, sintered iron, new silver, copper and bronze. It also drills hard plastics such as perspex. The cylindrical shank (equal to the drill bit diameter) is intended for drill stands and drill drivers, and fits three-jaw drill chucks.
The bits are manufactured to DIN 338 as Type N (flute angle), with a 135-degree tip and an h8 diameter tolerance. The pointed split-point tip gives active cutting and accurate centring without wandering. Do not use these bits on aluminium, and always work with a cooling agent.
Features and Benefits:
• TiN-coated HSS construction for an extended service life in metal
• 25 diameters from 1mm to 13mm in 0.5mm steps
• Split-point tip for active cutting and centring without wandering
• Manufactured to DIN 338, Type N, 135-degree tip, h8 tolerance
• Cylindrical shank compatible with three-jaw drill chucks
• Supplied in a ProBox case for organised storage
Specifications:
Net Weight: 1.045 kg
Material: HSS (high-speed steel) with TiN (titanium-nitride) coating
Standard: DIN 338
Flute Type: Type N
Tip Angle: 135 degrees
Diameter Tolerance: h8
Diameter, mm: 1.0/1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0/8.5/9.0/9.5/10.0/10.5/11.0/11.5/12.0/12.5/13.0
Working Length, mm: 12/18/24/30/33/39/43/47/52/57/57/63/69/69/75/75/81/81/87/87/94/94/101/101/101
Case Dimensions: 200 x 115 x 58 mm
Contents:
ProBox HSS-TiN (titanium coating) metal drill bit set, 25 pcs
Included diameters (mm): 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10; 10.5; 11; 11.5; 12; 12.5; 13
Included working lengths (mm): 12; 18; 24; 30; 33; 39; 43; 47; 52; 57; 57; 63; 69; 69; 75; 75; 81; 81; 87; 87; 94; 94; 101; 101; 101
