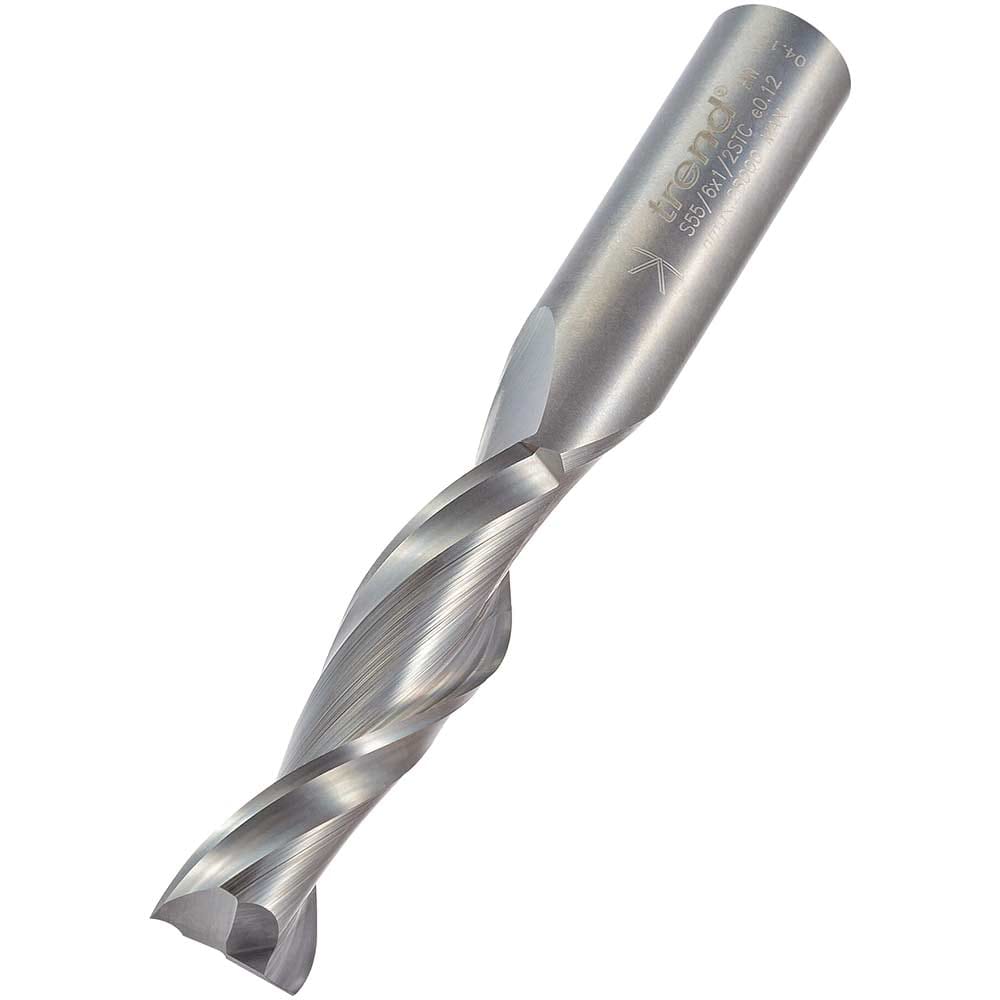

Trend STC Spiral Upcut Router Cutter

This Trend STC Spiral Upcut Router Cutter features a 12.7mm (1/2") cutting diameter with an impressive 50mm cut length and a 1/2" shank — the deepest-cutting variant in the range. This configuration is ideal for routing full-depth dados, housings, and grooves in one or two passes, making it a productive choice for CNC machining and production routing environments.

The generous 50mm cut length maximises material removal per pass in hardwoods and abrasive materials, while the spiral upcut geometry lifts chips clear and prevents burning during plunge cuts. Feed rates range from 5–10 m/min at 18,000–24,000 RPM. Compatible with CNC machines, fixed-head routers, and portable routers.

Features and Benefits:
• Upcut spiral prevents burning and clears chips efficiently during plunge cuts
• Long 50mm cut length maximises depth of cut per pass
• Ideal for hardwoods and abrasive materials
• Delivers a fine, clean finish
• High feed speed for improved productivity
• Two-flute configuration for smooth cutting performance
• Compatible with CNC machines, fixed-head routers, and portable routers

Specifications:
Diameter Cut: 12.7mm (1/2")
Cut Length: 50mm (2")
Shank Diameter: 1/2"
Dia Metric: 12.7
Dia Imperial: 1/2
Cut Length Metric: 50.8
Cut Length Imperial: 2
Overall Length Metric: 101
Overall Length Imperial: 4
Type or Grade: Up-cut
