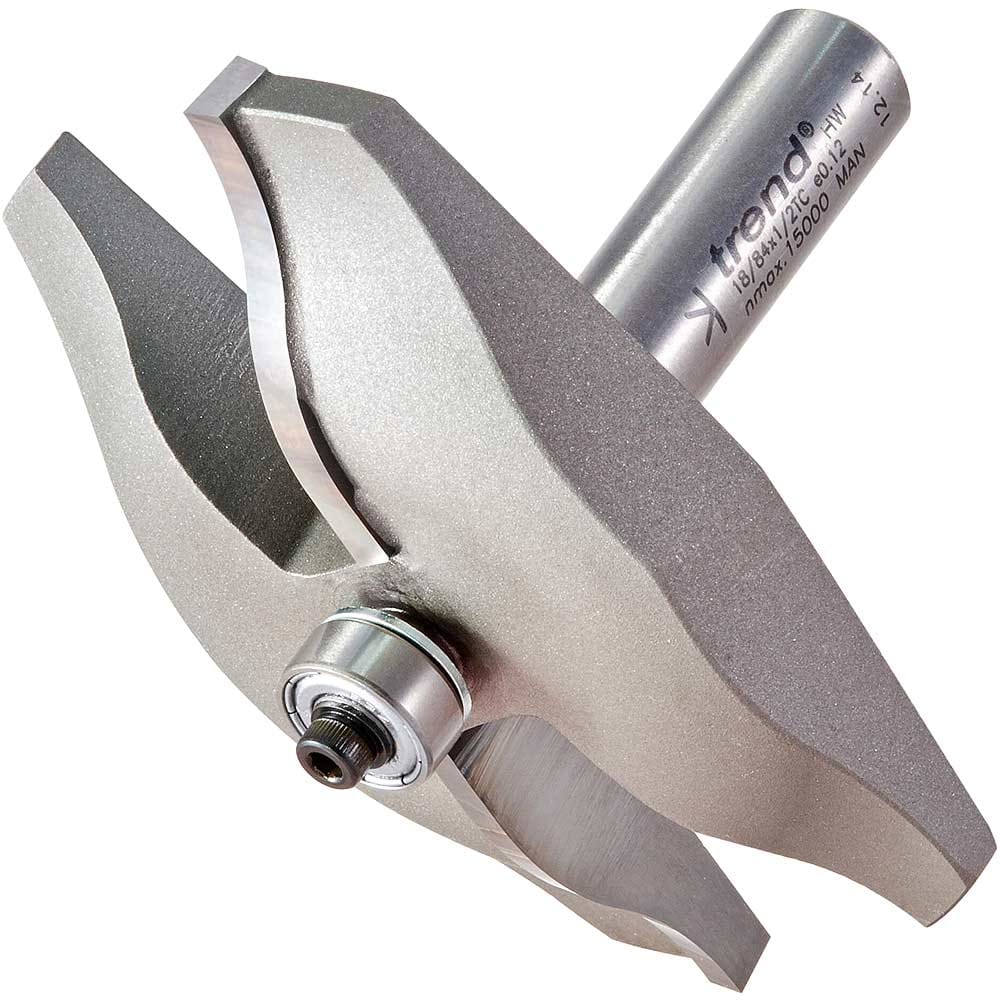

Trend Large Bearing Guided Ogee Panel Raiser Router Cutter

The Trend Large Bearing Guided Ogee Panel Raiser Router Cutter is a specialist raised panel moulding bit designed to produce traditional ogee-profile raised panels and frame doors using a fixed-position heavy-duty router.

Originally the preserve of the spindle moulder, this type of machining is now achievable with heavy-duty routers mounted overhead or in an inverted table configuration. The cutter runs best at lower speeds, making it well suited to a fixed router table setup where speed and feed can be carefully controlled.

Compatible with natural timber and MDF, this bit is designed to pair with Trend's profile scribers — specifically Ref. PSC/2 — allowing matched stile-and-rail joinery with consistent, professional results. The 1/2" shank ensures a secure, stable connection suitable for the demands of raised panel work.

Features and Benefits:
• Bearing-guided for accurate, consistent edge profiling without a fence
• Ogee profile produces traditional raised panel detailing on doors and cabinet fronts
• Compatible with natural timber and MDF for versatile application
• Matches Trend PSC/2 profile scribers for coordinated stile-and-rail work
• 1/2" shank for use with medium and heavy-duty routers only

Specifications:
Shank Diameter: 1/2"
Diameter: 85.7mm
Cut Length: 15.9mm
Overall Length: 75mm
Bearing Diameter: 12.7mm (1/2")
Radius 1: 22.2mm
