Trend CRAFTPRO Bearing Guided Large Radius Panel Raiser Router Cutter
The Trend CRAFTPRO Bearing Guided Large Radius Panel Raiser Router Cutter is a specialist raised panel moulding bit designed for producing the raised panel sections used in cabinet panelled doors.
Designed to match Trend's range of profile scribers, this cutter delivers consistent, accurate profiles that complement the full door construction. It is suitable for use on both natural timber and MDF, making it a versatile choice for cabinet makers and joiners working across different materials.
For router table use only. This cutter must be used in a stationary, variable speed router — either mounted overhead or inverted in a router table — and operated at a reduced speed appropriate for its 86mm diameter. Multiple passes are required, increasing the depth incrementally with each pass to achieve a clean, accurate profile.
Features and Benefits:
• Bearing guided for accurate, consistent edge profiling
• Large 40mm radius profile suited to traditional cabinet panelled door styles
• Compatible with natural timber and MDF
• Matches Trend's profile scriber range for complete door set construction
• 1/2" shank for secure, stable mounting in a router table

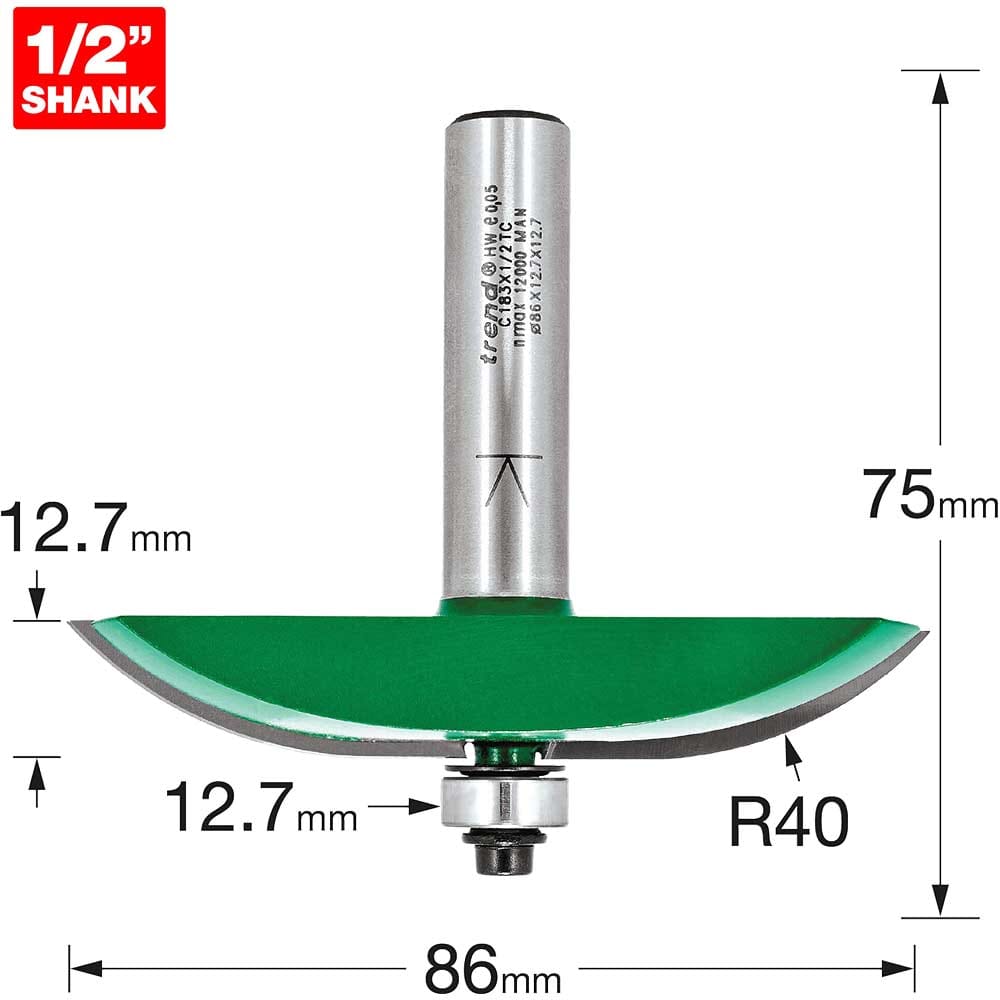

Specifications:
Shank Diameter: 1/2"
Diameter: 86mm
Cut Length: 12.7mm
Overall Length: 75mm
Bearing Diameter: 12.7mm
Radius: 40mm
