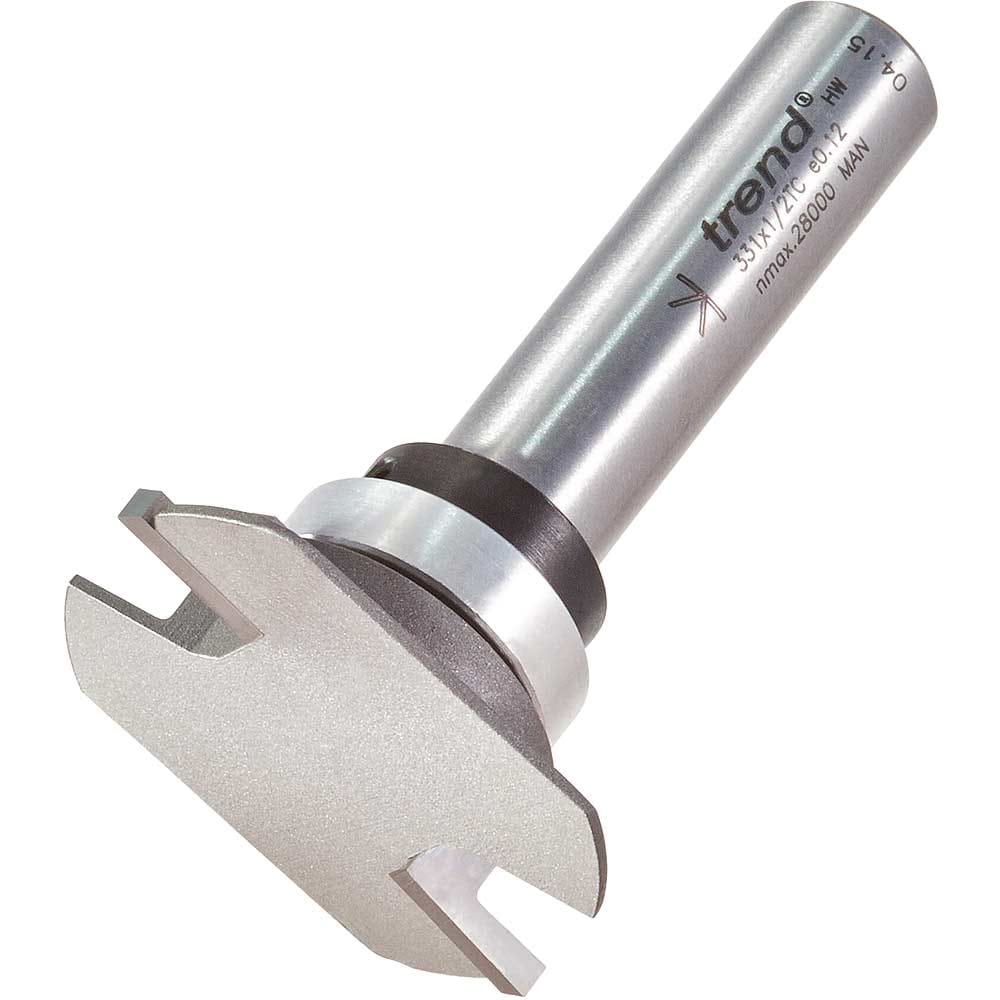

Trend Aquamac 63 Cutter Aquatex P6 Recess Router Cutter

The Trend Aquamac 63 Cutter is a specialist weather seal recessing router bit designed to cut the precise slot required for the Schlegel Aquamac 63 and Exitex Aquatex P6 weather strip systems in timber window and door applications.

Engineered to accommodate these popular weather strip profiles, the cutter allows for a particularly tight gap between the sash and frame — a critical requirement for effective weather sealing in quality joinery work. The slot can be positioned either partway down the side of the rebate or at the bottom of the rebate, giving the carpenter flexibility to suit different installation requirements.

This Trend router bit comes supplied with a guide-bearing as standard, which helps reduce setting-up time and ensures accurate, consistent results across repeated cuts. With a 1/2" shank and an overall length of 67mm, it is well suited to professional-grade routers used in window manufacturing and timber joinery.

Features and Benefits:
• Compatible with Schlegel Aquamac 63 and Exitex Aquatex P6 weather strip profiles
• Flexible slot positioning — rebate side or rebate bottom to suit installation preference
• Supplied with guide-bearing to speed up set-up and improve accuracy
• 1/2" shank suitable for professional router use
• Compact overall length of 67mm for controlled rebate work

Specifications:
Shank Diameter: 1/2"
Dia Metric: 41.3mm
Dia Imperial: 1 5/8"
Dia2 Metric: 28.3mm
Cut Length Metric: 2.7/4.8mm
Overall Length Metric: 67mm
Bearing Dia Metric: 22mm
