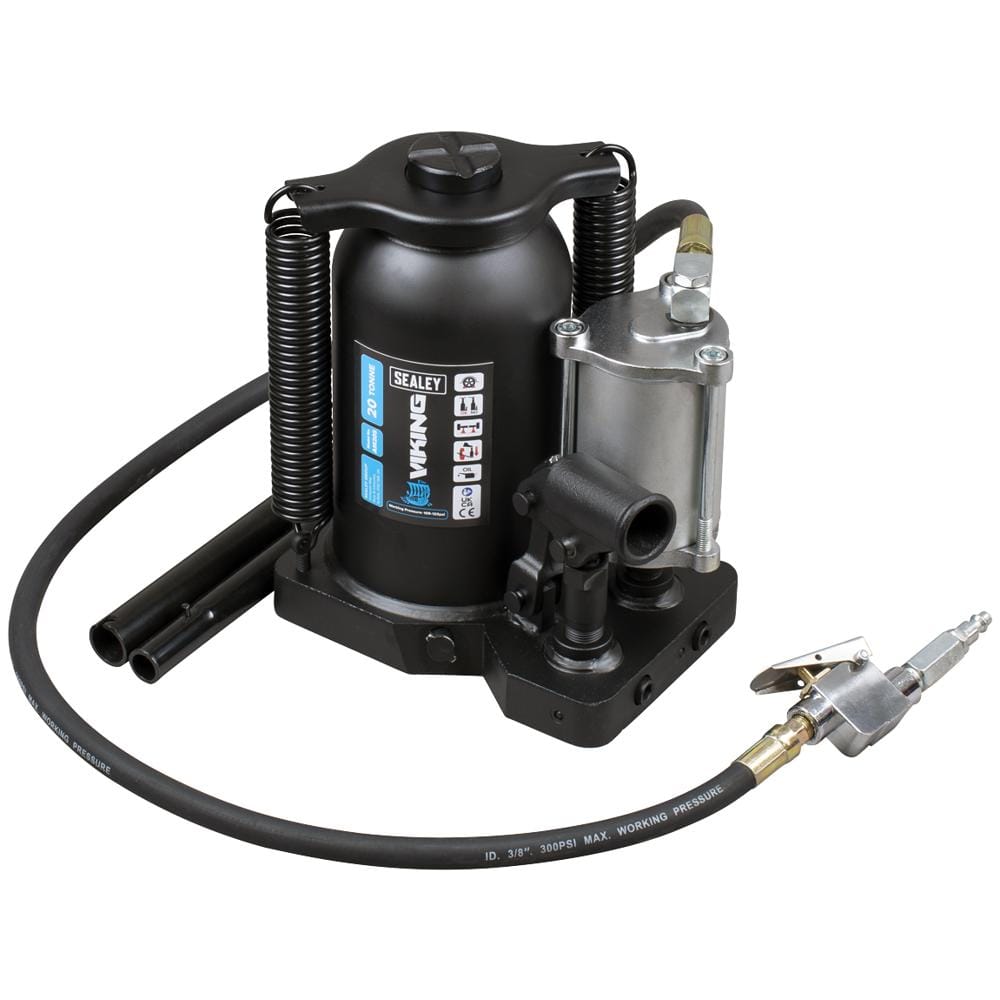

Sealey Viking Manual / Air Hydraulic Bottle Jack

The 20 tonne Viking bottle jack delivers reliable lifting power for medium to heavy-duty applications, making it ideal for commercial vehicles, agricultural machinery and general workshop use. With both air-assisted and manual operation modes, this jack adapts to your workspace requirements, whether you have compressed air available or need to work independently.

Built with Sealey's signature one-piece all-steel construction, the AM20S features an extra thick base, reservoir and pump cylinder that provides exceptional stability when working under load. The fully serviceable ram piston includes an extension screw for increased lifting height versatility. The 2-piece pump handle offers comfortable operation, whilst the 90° rotating pump allows you to position the jack effectively in restricted spaces.

Features and Benefits:
• 20 tonne lifting capacity for commercial vehicle applications
• Dual operation: air-assisted or manual hydraulic
• Fully serviceable ram piston with extension screw
• 2-piece pump handle for comfortable operation
• Safety overload valve prevents over-pressurisation
• 90° rotating pump improves access in tight spaces
• Service kit readily available
• 3 year guarantee

Specifications:
Air Consumption: 7.5cfm
Brand: Viking
Capacity: 20 Tonne
Maximum Height: 515mm
Minimum Height: 260mm
Nett Weight: 19kg
Piston Stroke: 150mm
Screw Extension: 105mm
Working Pressure: 109-123psi
