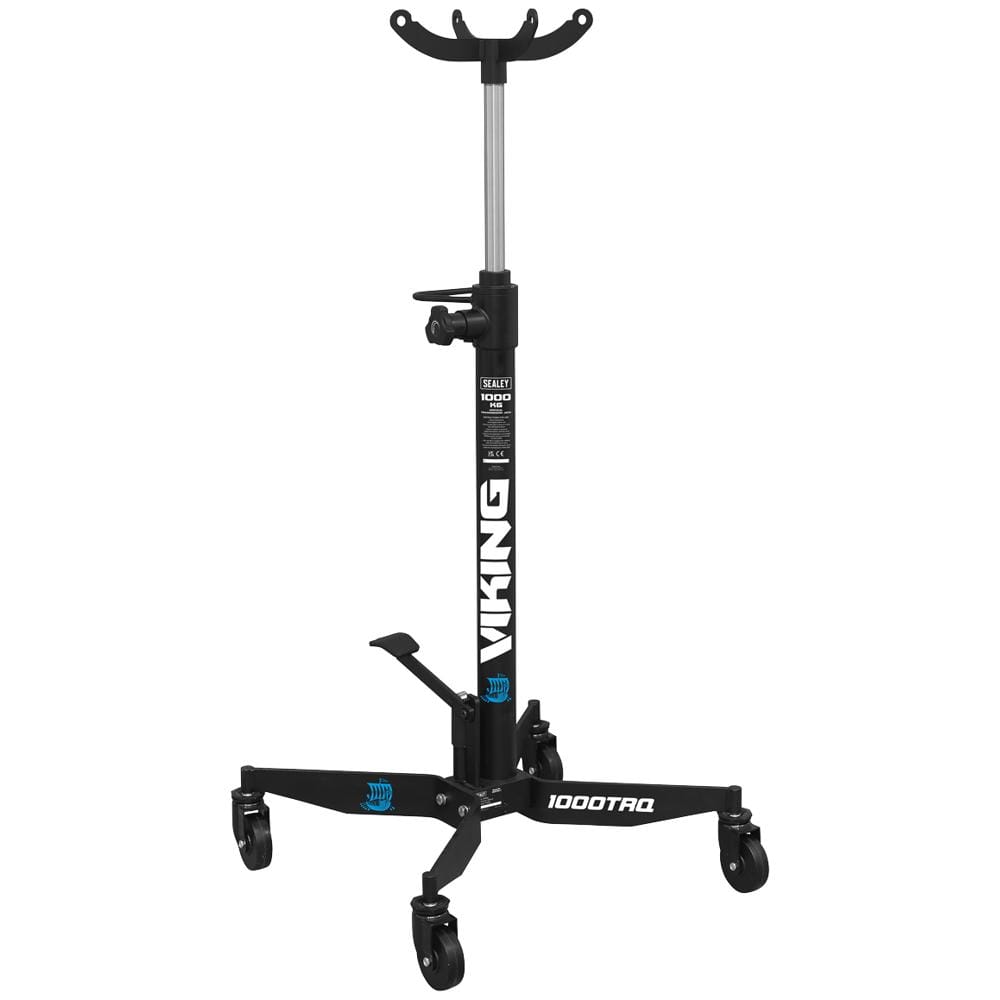

Sealey Vertical Quick Lift Transmission Jack

The 1 tonne capacity Sealey Vertical Quick Lift Transmission Jack (Model No. 1000TRQ) is the heavy-duty option in the range, ideal for handling larger commercial vehicle gearboxes and substantial transmission assemblies. This robust variant requires only a maximum of 28 pumps to reach full height, making it efficient even with its higher capacity.

The Quick Lift feature dramatically reduces positioning time, whilst single foot pedal operation keeps your hands free to guide and secure the load. The spring-loaded dead man's safety release control provides crucial protection against inadvertent lowering, and the 2-way hydraulic unit ensures the saddle descends at a controlled speed regardless of load status.

The reversible saddle design extends functionality beyond transmission work, allowing a jack pad to be fitted for other heavy components. Castors and a side handle deliver excellent manoeuvrability despite the unit's substantial capacity. The hydraulic unit is larger than economy models, ensuring improved performance and long-term durability. Compatible with the optional Adjustable Gearbox Support (Model No. ADT3) and backed by a 3-year guarantee.

Features and Benefits:
• 1 tonne capacity for heavy-duty applications
• Maximum 28 pumps to reach full height
• Quick Lift technology saves time and effort
• Hands-free foot pedal operation
• Spring-loaded safety release control
• 2-way hydraulic unit for controlled lowering
• Reversible saddle for versatile use
• Enhanced hydraulic unit for durability
• Easy manoeuvrability with castors and handle
• 3-year guarantee included

Specifications:
Base Size: 660 x 620mm
Brand: Sealey
Capacity: 1000kg
Fixed/Adjustable Saddle: Fixed
Maximum Saddle Height: 2010mm
Minimum Saddle Height: 1165mm
Nett Weight: 39.80kg
Pump Strokes to Maximum Height: 28
Ram Extensions: 840mm
Warranty Information: Backed by our 3-year guarantee, in addition to your statutory rights. Guarantee excludes general wear, tear and misuse.
