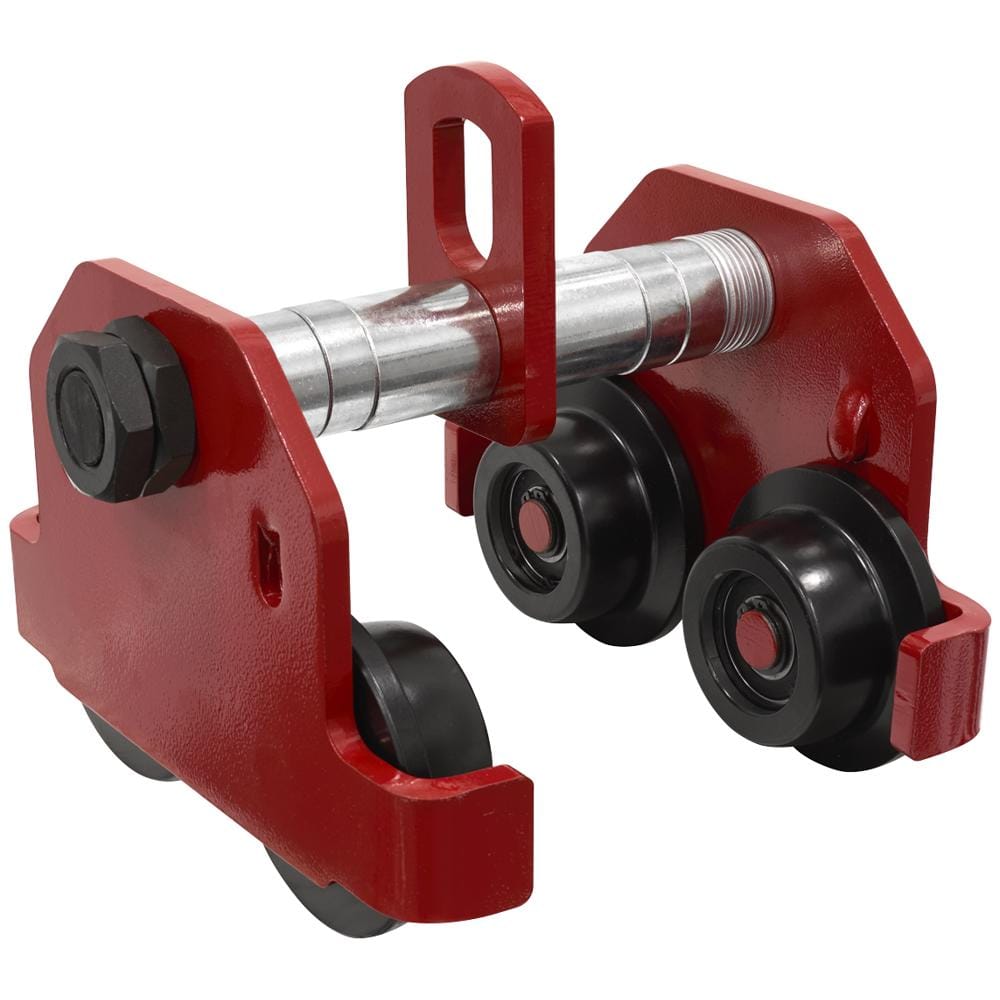

Sealey RSJ Beam Trolley

The 2 Tonne capacity Sealey RSJ Beam Trolley (Model PT2000) is the heavy-duty choice for demanding industrial lifting applications. With double the capacity of the standard models, this variant handles loads up to 2000kg with confidence and precision.

Designed for mounting onto I-beams or RSJs, this trolley enables safe sideways manoeuvring of substantial loads. The track width adjusts between 80-168mm, providing the widest range of compatibility in the series and accommodating larger beam profiles commonly found in industrial settings.

Four evenly spaced wheels ensure smooth, balanced movement along the load bearer, reducing effort and improving positioning accuracy. Integrated wheel guards prevent unwanted contact with other trolleys when multiple units are mounted on the same beam, enhancing safety in busy working environments.

Features and Benefits:
• 2 tonne capacity for heavy-duty lifting operations
• Adjustable track width between 80-168mm for maximum versatility
• Four evenly spaced wheels provide smooth, stable movement
• Wheel guards prevent contact with adjacent trolleys
• Compatible with lever hoists and chain blocks
• Enables safe sideways load positioning

Specifications:
Brand: Sealey
Nett Weight: 13kg
Capacity: 2000kg
Track Width Adjustable Range: 80-168mm
Minimum Curve Radius: 1300mm
A: 255mm
B: 138mm
C: 138mm
D: 102mm
E: 128mm
Weight: 13kg
Minimum Standard I-Beam Dimensions (D x W x Web): 180 x 100 x 6mm
Maximum Distance Between Spans: 3000mm
Maximum Standard I-Beam Dimensions (D x W x Web): 350 x 150 x 9mm
Maximum Distance Between Spans: 9000mm
