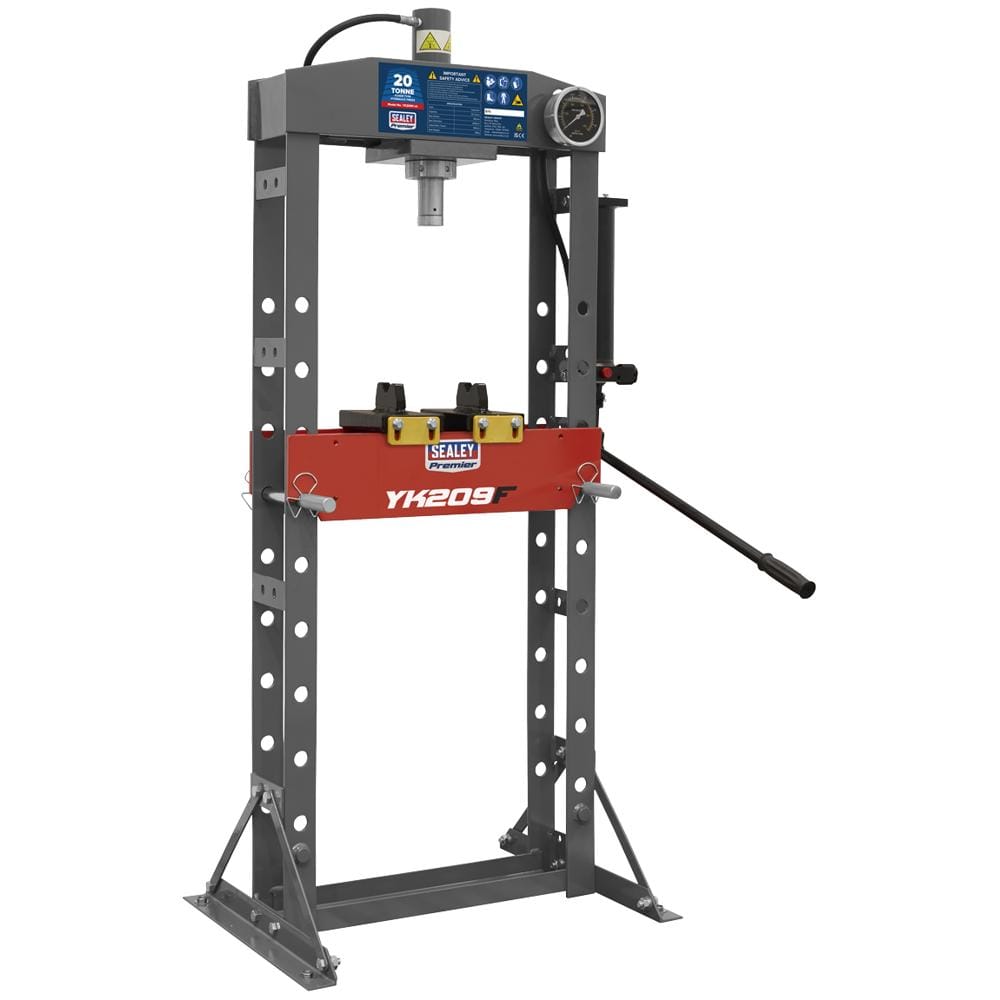

Sealey Hydraulic Press

The 20 Tonne Hydraulic Press delivers substantial pressing force in a compact footprint, making it ideal for medium-duty workshop applications including bearing fitting, bushing removal, and component straightening. This model features 176mm of lateral ram travel, providing excellent flexibility for off-centre pressing operations where components cannot be positioned directly under the ram.

Constructed from high quality steel with a fully welded frame design, this press combines strength with stability. The powder coated paint finish enhances corrosion resistance for long-term workshop use. The hydraulic pump unit operates smoothly, whilst the integrated ram pressure gauge allows precise monitoring of applied force. With a table aperture of 154mm, this press accommodates a wide range of components and assemblies.

Features and Benefits:
• 20 tonne pressing capacity for medium-duty applications
• 176mm lateral travel accommodates off-centre work
• 154mm table aperture provides versatile component access
• Fully welded frame construction ensures structural integrity
• Ram pressure gauge enables accurate force control
• Supplied complete with flat pressing plate and V-blocks
• 5 year guarantee for long-term reliability

Specifications:
Bench or Floor Mounting: Floor
Brand: Premier
Capacity: 20 Tonne
Gauge Included: Yes
Lateral Ram Travel: 176mm
Maximum Height - Ram to Table: 918mm
Minimum Height - Ram to Table: 38mm
Nett Weight: 105kg
Operating Table Width: 510mm
Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height: 1625mm
Ram Diameter: Ø48mm
Ram Stroke: 186.5mm
Table Aperture: 154mm
Type: Hydraulic
Working Table Depth: 174mm
Working Table Width: 630mm
