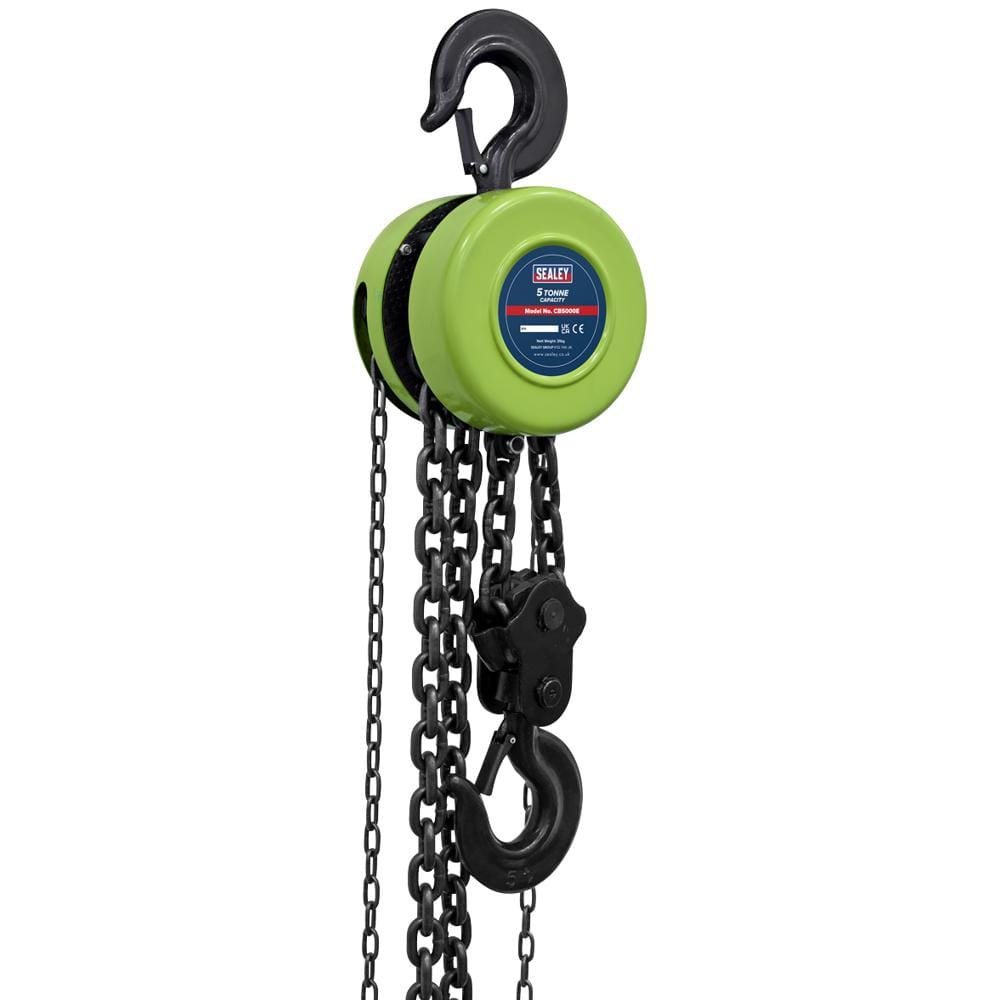

Sealey Heavy Duty Chain Lifting Block

The Sealey Heavy Duty Chain Lifting Block with 5 tonne capacity represents the highest capacity option in this range, designed for the most demanding industrial lifting applications. With the capability to handle loads up to 5000kg, this model is essential for heavy manufacturing, construction, and maintenance environments where substantial overhead lifting capacity is required.

Fitted with heat treated and ground gearing engineered to manage extreme loads, this 5 tonne variant provides smooth, controlled lifting action even with maximum weight. The mechanical load brake is particularly critical at this capacity level, offering reliable secondary safety protection against uncontrolled descent. Hardened alloy chain construction ensures the strength and wear resistance necessary for consistent heavy-duty operation.

Load hooks incorporate safety latches to secure substantial loads during lifting operations, whilst the compact gear housing design allows deployment in areas with restricted overhead clearance. This makes it suitable for use beneath structural beams or in industrial facilities where ceiling height may be limited.

Features and Benefits:
• 5 tonne capacity for maximum lifting capability
• Heavy-duty heat treated gearing
• Mechanical load brake for critical safety protection
• Hardened alloy chains for extreme durability
• Safety latches prevent load release
• Compact design for confined spaces
• Model No. CB5000E

Specifications:
Brand: Sealey
Capacity: 5000kg
Chain Falls: 2
Head Room: 600mm
Load Chain Diameter: Ø10mm
Maximum Hook Capacity Ø: 41mm
Nett Weight: 35kg
Pulling Effort: 476N
Safe Working Load: 5000kg
Standard Lift: 3m
Test Load: 7500kg
