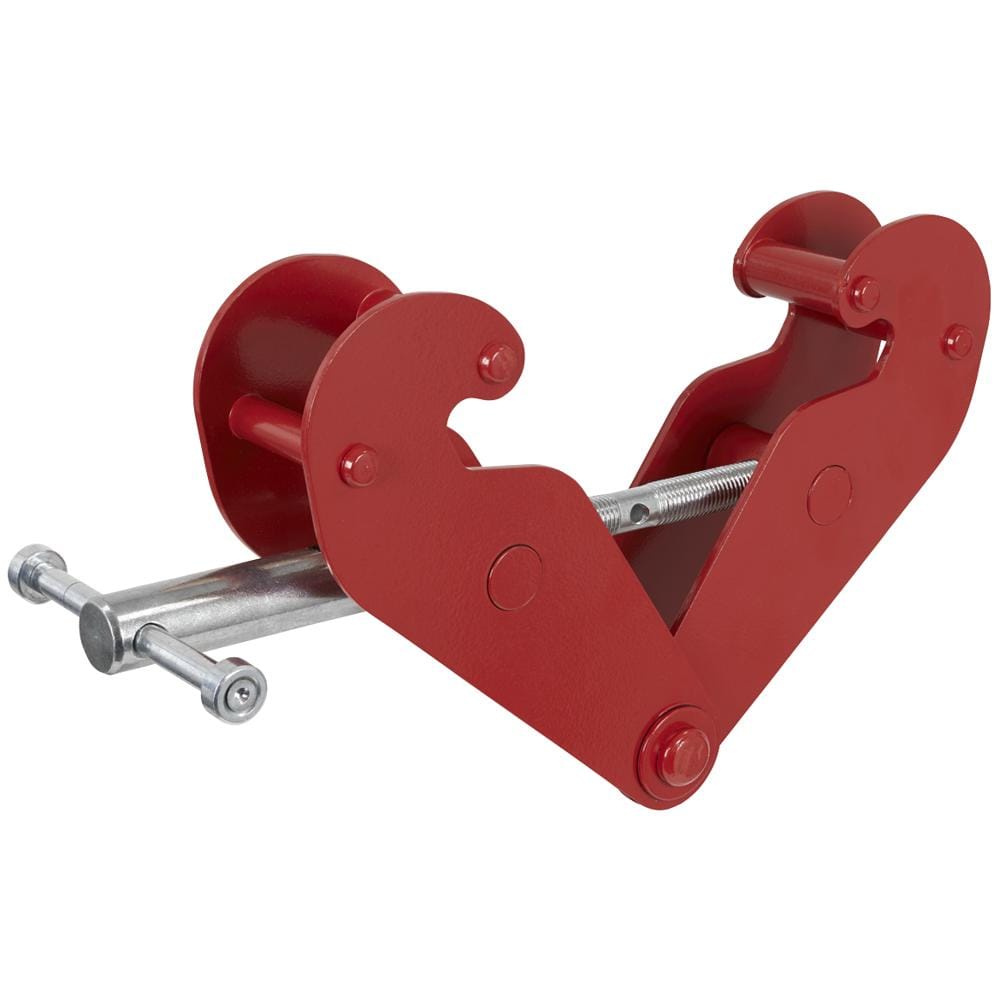

Sealey Beam Clamp

The Sealey BC3000 Beam Clamp is the heavy-duty option in the range, offering a robust 3 tonne capacity for demanding industrial lifting applications. This high-capacity clamp provides semi-permanent attachment to steel beams, creating a secure lifting point for chain blocks, hoists and lifting tackle in environments where maximum load-bearing capability is essential.

The 3 tonne variant is specifically engineered for heavy fabrication workshops, construction sites and industrial facilities handling substantial loads. Beyond its primary lifting function, the BC3000 excels at transferring heavy steel beams and can be deployed as a pulling clamp for challenging applications.

Despite its impressive capacity, the BC3000 maintains a low profile through its integral pivot and lifting point design, ensuring it remains practical in confined spaces whilst delivering maximum lifting performance.

Features and Benefits:
• 3 tonne capacity for heavy-duty lifting operations
• Semi-permanent beam attachment for reliable, long-term industrial use
• Integral pivot/lifting point maintains low profile despite high capacity
• Multi-purpose design for lifting, beam transfer and pulling applications

Specifications:
Adjustable Beam Width: 75-220mm
Brand: Sealey
Capacity: 3000kg
Dimensions: (A) - 260mm, (B) - 180-360mm, (C) - 74mm, (D) - 6mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm
Nett Weight: 8.9kg
Note: Refer to catalogue for diagram.
