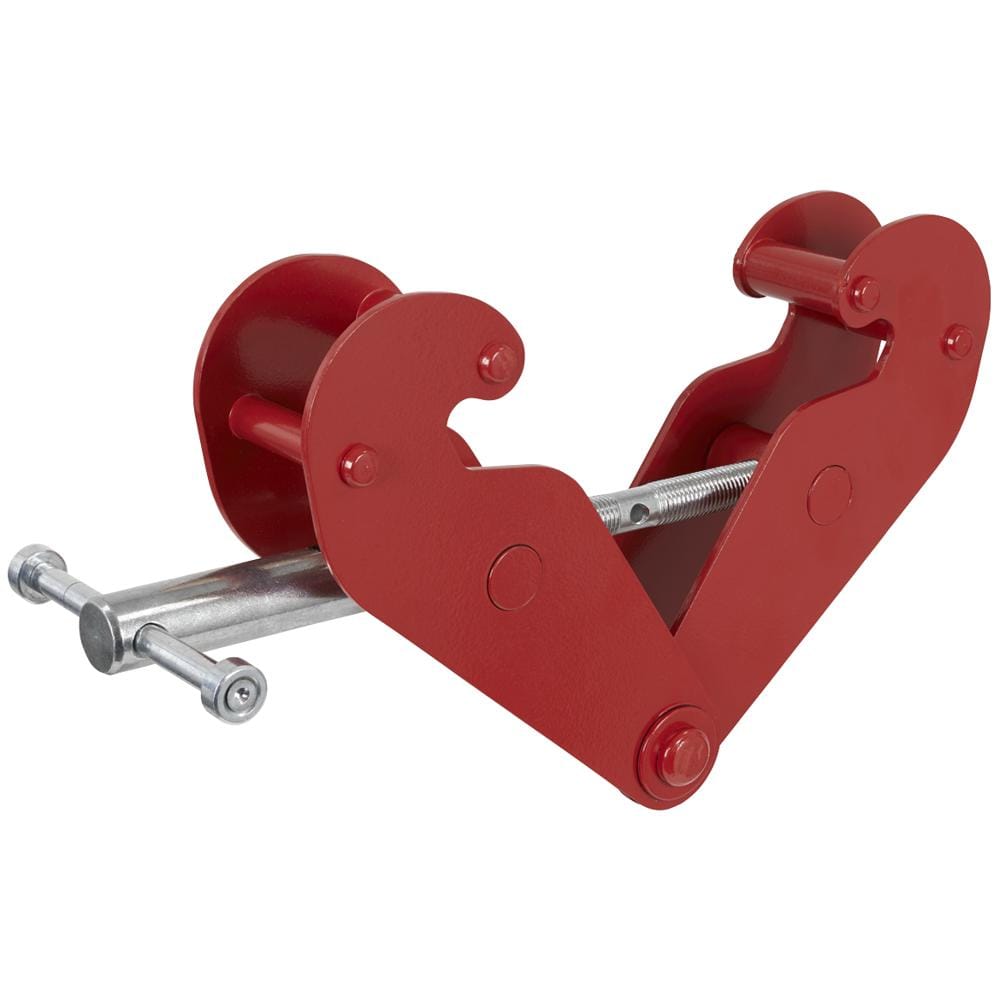

Sealey Beam Clamp

The Sealey BC2000 Beam Clamp delivers a 2 tonne capacity, providing enhanced lifting capability for medium-duty industrial applications. This mid-range option is designed for semi-permanent attachment to steel beams, creating a secure lifting point for chain blocks, hoists and lifting tackle in environments requiring greater load-bearing capacity.

With its 2 tonne rating, the BC2000 strikes an excellent balance between capability and versatility, making it suitable for general fabrication workshops, construction sites and warehousing operations. The clamp's multi-functional design allows it to be used not only for lifting but also for transferring steel beams and functioning as a pulling clamp.

The integral pivot and lifting point design maintains a low profile, ensuring the clamp remains practical even in confined working spaces.

Features and Benefits:
• 2 tonne capacity for medium-duty lifting operations
• Semi-permanent attachment provides stable, long-term lifting point
• Low-profile integral pivot/lifting point for space-conscious installations
• Versatile application for lifting, beam transfer and pulling tasks

Specifications:
Adjustable Beam Width: 75-220mm
Brand: Sealey
Capacity: 2000kg
Dimensions: (A) - 230mm, (B) - 180-360mm, (C) - 74mm, (D) - 6mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm
Nett Weight: 4.35kg
Note: Refer to catalogue for diagram.
