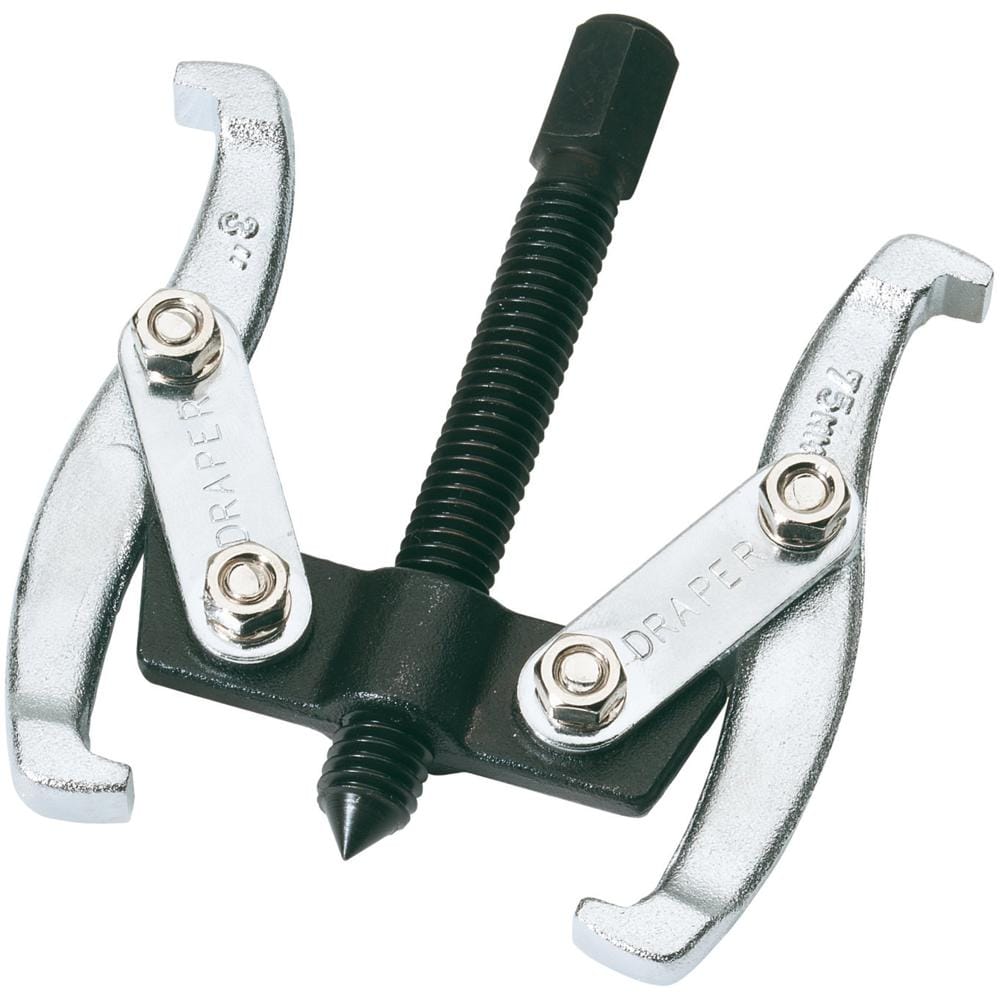

Draper N130 Twin Leg Reversible Gear Puller

The 65mm Draper N130 Twin Leg Reversible Gear Puller is the compact option in the range, ideal for working in tighter spaces and with smaller components. This size makes it particularly suitable for automotive applications involving smaller bearings and gears where access is restricted.

Featuring two reversible legs manufactured from forged carbon steel, this puller offers both long and short reach capabilities, providing versatility for different pulling tasks. The legs can be quickly reversed to switch between external and internal pulling applications. The yoke and thrust bolt are constructed from carbon steel for reliable strength, whilst the screw features a rolled thread with a chemically blacked finish to resist corrosion and ensure smooth operation.

Features and Benefits:
• 65mm capacity ideal for smaller components and confined spaces
• For external and internal pulling of gears, bearings, and similar items
• Forged carbon steel legs with long and short reach facility
• Chemically blacked finish for enhanced durability

Specifications:
Max Reach: 50mm
Max Spread: 75mm
Central Screw Size: 10.7 x 108mm
Hexagonal Head: 14mm
Screw Hardness: 38–42 HRC
Net Weight (approx): 0.35kg

Contents:
1 x Twin Leg Reversible Puller, 65mm Reach x 75mm Spread
