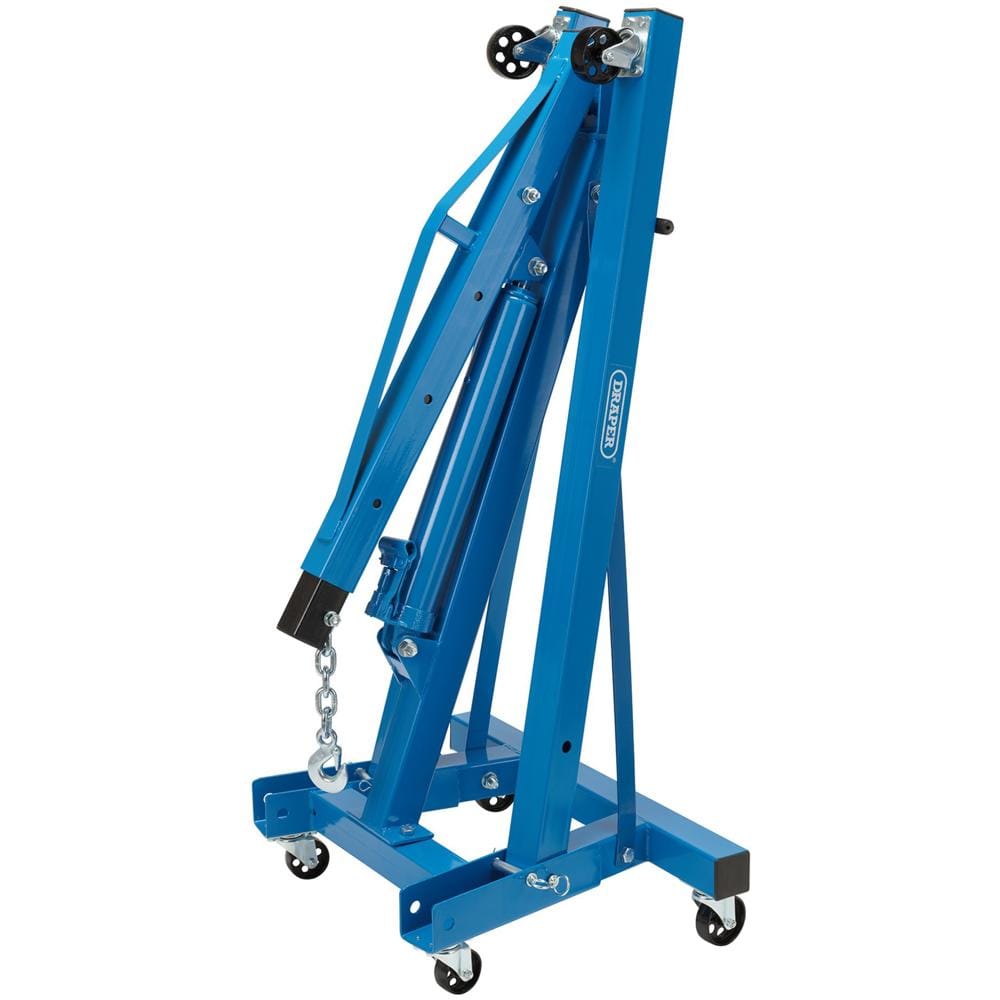

Draper Engine Crane

This robust engine crane delivers a maximum capacity of 2 Tonnes, making it suitable for heavier engine lifting applications in busy workshops. The single-piston hydraulic pump ensures rapid lifting of an engine out of its bay with little effort, whilst the four pre-set jib positions offer versatility, with a maximum capacity of 500kg when the jib is fully extended.

The outrigger legs can be folded to optimise storage workshop space or for easy transportation when required. Six robust castor wheels allow safe mobility around your workspace, whilst twin safety overload valves are fitted to prevent exceeding capacity during operation. This 2 Tonne engine crane is compatible with a wide range of load slings and levellers, providing flexibility for various lifting tasks.

Features and Benefits:
• 2 Tonne maximum lifting capacity
• Single-piston hydraulic pump for rapid lifting
• Four pre-set jib positions (500kg max when fully extended)
• Twin safety overload valves
• Six robust castor wheels for safe mobility
• Folding design optimises storage space
• Compatible with a wide range of load slings and levellers

Specifications:
Capacity: 2 Tonne
Capacity position 1: 2,000kg
Maximum jib length position 1: 638mm
Maximum jib height position 1: 2,250mm
Capacity position 2: 1,500kg
Maximum jib length position 2: 458mm
Maximum jib height position 2: 2,110mm
Capacity position 3: 1,000kg
Maximum jib length position 3: 278mm
Maximum jib height position 3: 1,950mm
Capacity position 4: 500kg
Maximum jib length position 4: 98mm
Maximum jib height position 4: 1,800mm
Frame height: 210mm
Frame length: 855mm
Frame width: 70mm
Folded dimensions: H 1,305 x L 500 x W 611mm
Weight: 79.40kg

Contents:
1 x Engine Crane, 2 Tonne
