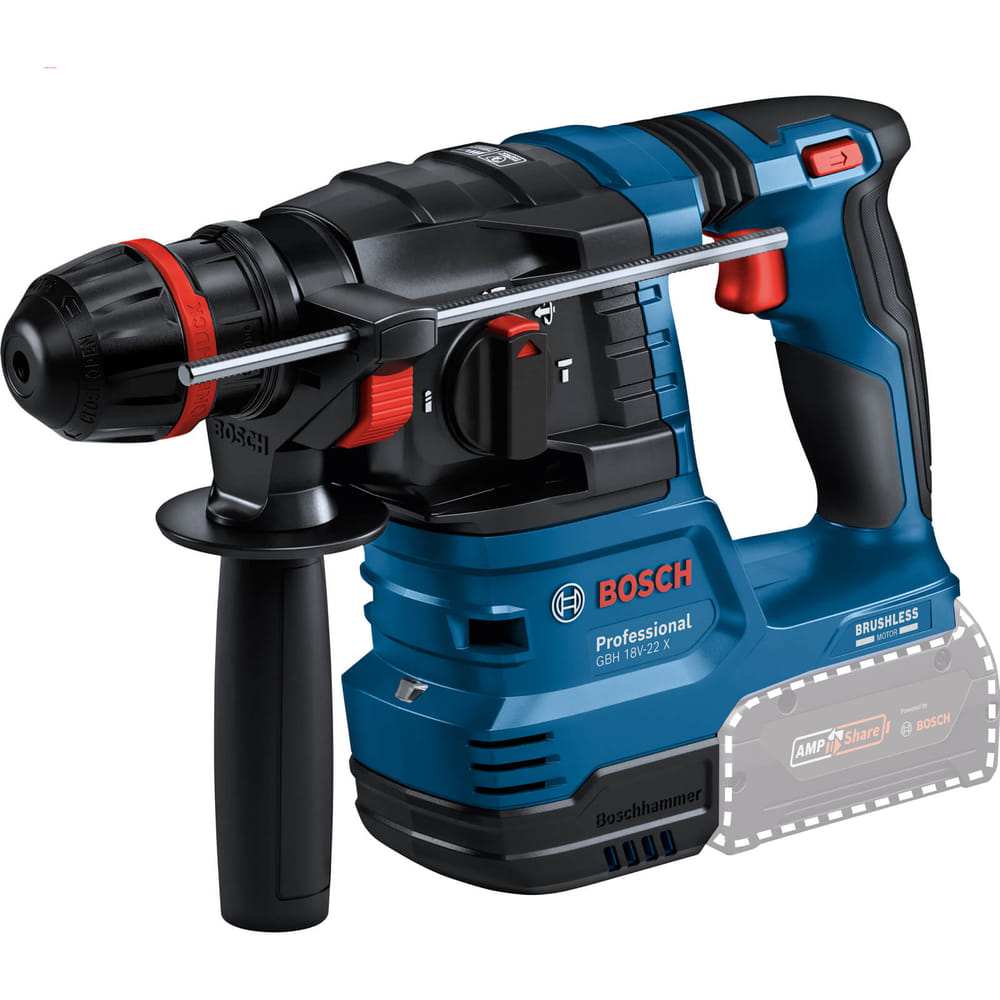

Bosch GBH 18V-22 X 18v Cordless SDS Plus Hammer Drill

The Bosch GBH 18V-22 X is an 18V cordless SDS Plus hammer drill designed for hammer drilling and chiselling in concrete and brick, as well as drilling in wood and steel — all without a power cable to limit your working range.

Powered by an 18V brushless motor with constant speed control, this drill delivers consistent power output throughout the battery charge, meaning more holes per charge compared to conventional brushed motors. The variable speed range of 0–1,050 rpm and impact rate of up to 4,675 bpm give you precise control across a wide range of materials and applications.

Safety and user comfort are well considered. KickBack Control reduces the risk of injury from sudden tool rotation during accidental jams, while Vibration Control actively absorbs pulsation to limit vibration exposure during prolonged use — an important consideration in line with HSE guidance on hand-arm vibration.

The standout feature is the ONECHUCK system — a single toolholder compatible with SDS-plus, cylindrical, and hex shank bits, removing the need to swap chucks when switching between drilling modes. The drill also supports the Bosch Auto Power GDE 18V-12 or GDE 12 dust extractor attachment, helping to maintain a cleaner, safer working environment — particularly relevant when drilling into concrete or masonry on occupied sites.

Supplied with an L-BOXX 136 storage case, an auxiliary handle, and a depth gauge, this is a well-equipped package suited to builders, groundworkers, and general contractors working across concrete, brick, wood, and steel.

Features and Benefits:
• ONECHUCK system accepts SDS-plus, cylindrical, and hex shank bits — no chuck swapping required
• Brushless motor with constant speed delivers more holes per charge and consistent power output
• KickBack Control reduces risk of injury from accidental tool rotation during jams
• Vibration Control absorbs pulsation to reduce hand-arm vibration exposure during use
• Compatible with Bosch Auto Power GDE 18V-12 / GDE 12 dust extractor for cleaner working conditions
• Variable speed from 0–1,050 rpm with impact rate up to 4,675 bpm for versatile material control
• Supplied with L-BOXX 136, auxiliary handle, and depth gauge — batteries not included

Specifications:
Battery Voltage: 18V
Weight (without battery): 2.6 kg
Length: 322 mm
Width: 88 mm
Height: 208 mm
Rated Speed: 0–1,050 rpm
Impact Rate: 0–4,675 bpm
Drilling Diameter in Concrete (hammer drill bits): 4–22 mm
Optimum Application Range in Concrete: 6–12 mm
Max. Drilling Diameter in Wood: 26 mm
Max. Drilling Diameter in Metal: 13 mm
Toolholder (supplied): SDS-plus, Cylindrical, HEX
Sound Pressure Level: 95 dB(A)
Sound Power Level: 103 dB(A)
Vibration (hammer drilling in concrete): 14.7 m/s² (K: 1.5 m/s²)
Vibration (chiselling in concrete): 9.6 m/s² (K: 1.5 m/s²)

Contents:
L-BOXX 136 (1 600 A01 2G0)
L-BOXX inlay for GBH 18V-22 X (6 082 850 7HU)
Auxiliary handle (1 619 P16 971)
Depth gauge (1 613 001 009)
