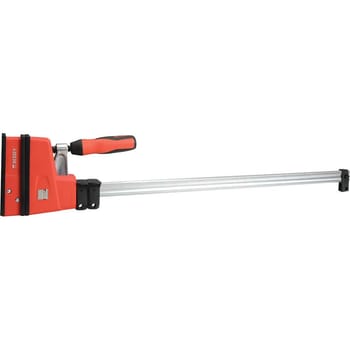

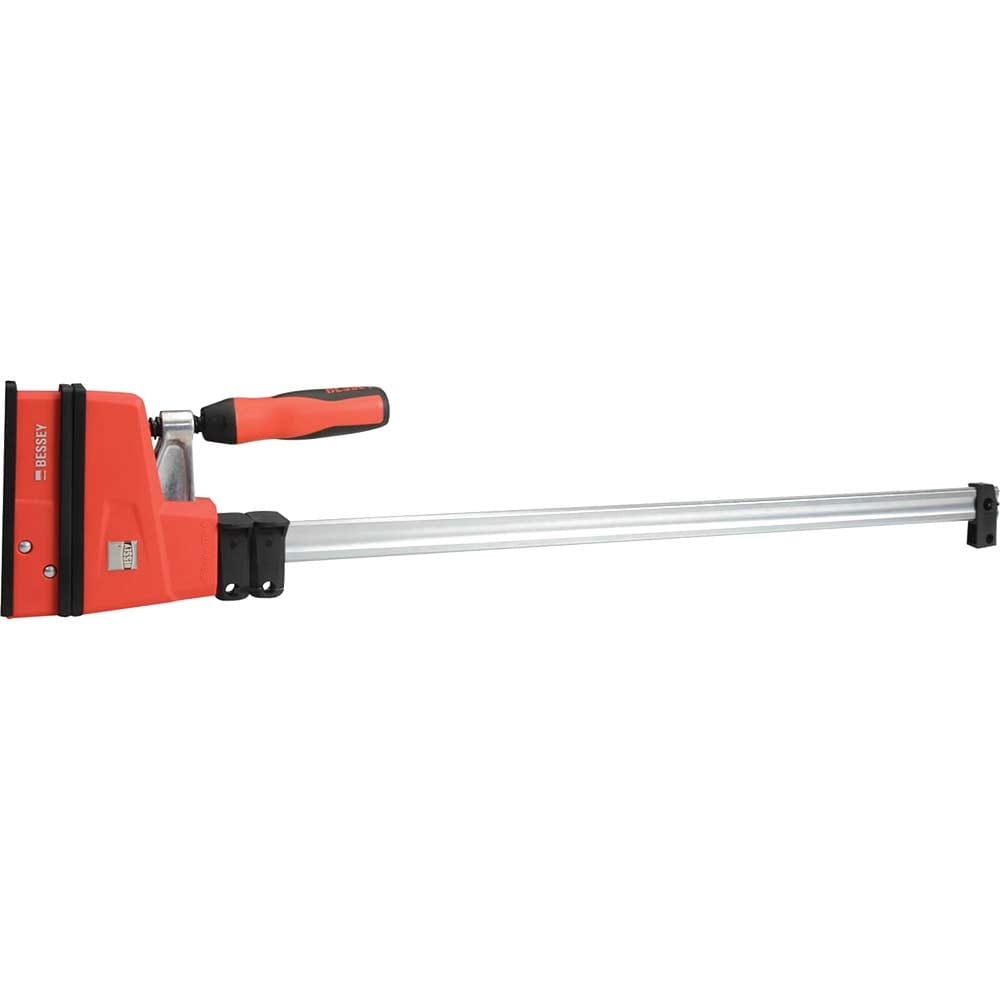

Bessey K Body REVO Clamp

The Bessey K Body REVO Clamp with 600mm clamping capacity offers excellent versatility for medium to large-scale joinery, cabinet making, and general workshop applications. This mid-range size strikes an ideal balance between reach and manoeuvrability, making it perfect for assembling furniture, door frames, and similar projects where substantial clamping width is required.

Delivering up to 8,000N of clamping force through extremely large parallel jaw surfaces, this 600mm clamp ensures even pressure distribution across your workpieces. The metal-reinforced plastic housing features an optimised sliding arm with double slide protection that maintains clamping force and prevents accidental slippage. Three removable pressure caps protect delicate surfaces whilst resisting glue, paint, and grease solvents.

Convert effortlessly between clamping and spreading functions without tools, with spreading range from 255mm to 730mm. The high-quality 2-component symmetrical plastic handle features a hexagon socket for comfortable, controlled application of force.

Features and Benefits:
• Clamping force up to 8,000N for secure workholding
• Very large parallel clamping surface for even pressure
• Three pressure caps protect delicate surfaces
• Tool-free conversion to spreading function
• High-quality 2-component plastic handle for comfort

Specifications:
• Clamp Capacity (Length): 600mm
• Clamping Force: up to 8,000N
• Opening: 600mm
• Throat Depth: 95mm
• Rail: 29 x 9mm
• Spreading Min/Max: 255/730mm
• Weight: 2.76kg
