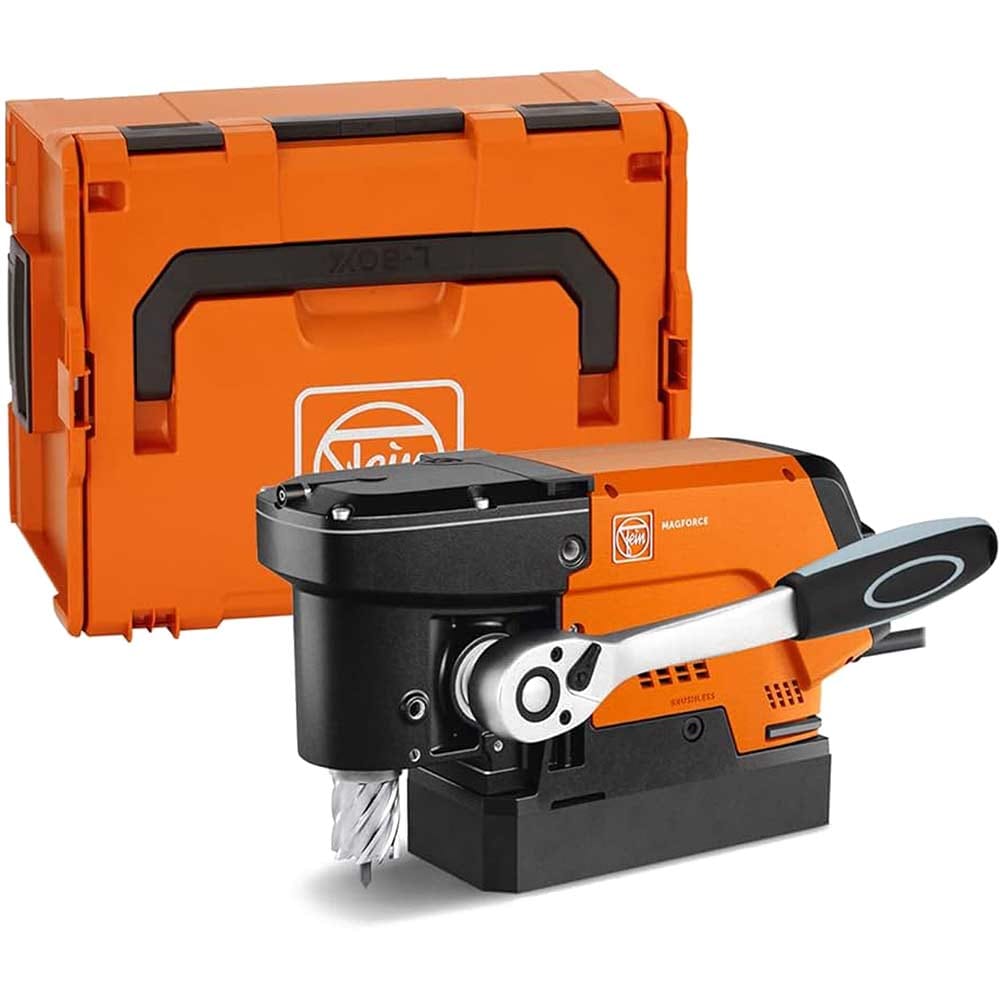

Fein KBC36 Magforce Magnetic Drilling Machine

The Fein KBC36 MAGFORCE is an ultra-compact, lightweight single-speed magnetic core drill designed specifically for tight workshop and construction site environments. It boasts a robust 1200w brushless motor that ensures powerful performance with high-speed stability for rapid work progress.

This drill offers forward/reverse operation and electronic speed control, catering to various drilling tasks including core drilling, twist drilling, tapping, and countersinking. Ideal for professionals needing agility without compromising on power or precision. With a height of just 169mm, a length of 290mm, and weighing only 8.5kg, it offers exceptional manoeuvrability and accessibility.

Features and Benefits
• Brushless motor for maximum performance
• Reversible rotation for a wider application range
• High gearbox positioning for optimum view of the drilling point
• Large installation space under the drill spindle with a stroke range of 46 mm
• Space-saving operation on both sides with ratchet
• Tilt sensor stops the drill motor if the tool slips or tilts
• Integrated handle
• Speed saving memory function
• Extremely small and light for working in tight and difficult-to-reach spot
• Low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results
• Personal safety switch
• Slot for 5 mm hexagon socket wrench on the tool itself

Specifications
• Input: 1200w
• Output: 680w
• Speed – Full Load: 130-610rpm
• Speed – No Load: 130-660rpm
• Stroke: 46mm
• Carbide Core Drill Bit Max: 36mm
• HSS Core Drill Max: 36mm
• Core Drill, Drilling Depth Max: 35mm
• Core Drill Holder: 3/4" Weldon
• Magnetic Holding Power: 10,000N
• Cable Length: 3m
• Approx. Weight: 8.5kg
